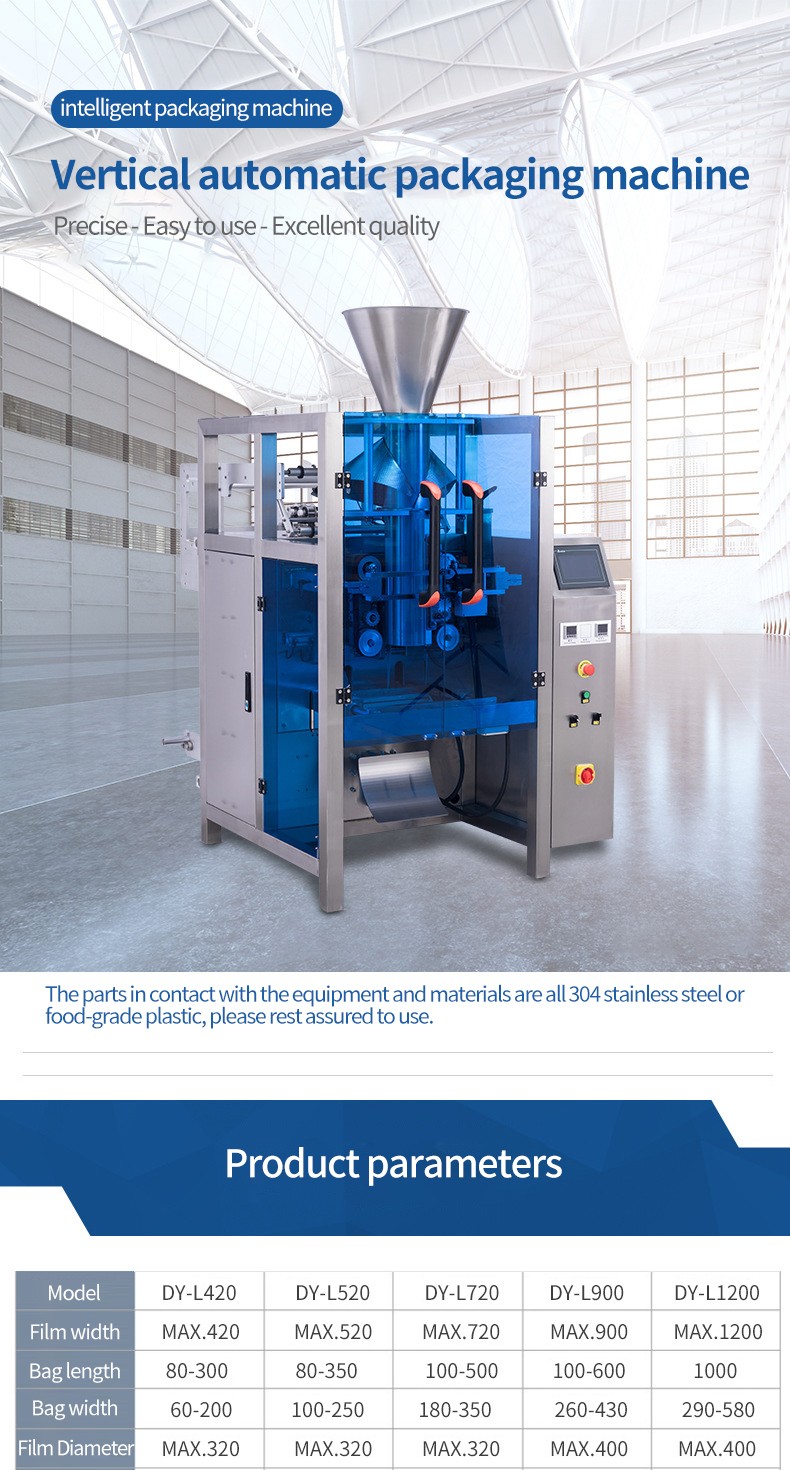

Fully automatic vertical packaging machine
1. Improve production efficiency: It can realize the whole process of automatic bag making, filling, sealing, and output without excessive manual intervention, which greatly improves the packaging speed and production efficiency.
2. Stable and reliable operation: It adopts advanced automatic control system and precise mechanical structure, with stable operation and long-term continuous work.
3. Diverse packaging forms: It supports a variety of common bag types such as three-side sealing, four-side sealing, and back sealing. It can also make different types of packaging bags such as flat bags, three-dimensional bags, handbags, and punching bags to meet the packaging needs of different products and the diversified packaging requirements of the market.
4. Accurate filling volume: Equipped with precise metering devices, it can ensure that the product filling volume in each packaging bag is accurate, and the error can be controlled within a small range, which improves the quality and consistency of the product.
5. Small footprint: The overall structure of the machine is compact, the footprint is small, the space utilization rate is high, and it is easy to place and layout in the production workshop, which can save valuable production space for the enterprise.
6. Reduce packaging costs: Due to its efficient packaging performance and precise metering function, it can reduce the waste of packaging materials and reduce packaging costs while ensuring packaging quality.
The fully automatic vertical packaging machine is an advanced packaging equipment that operates based on an automated control system and mechanical transmission principles. When working, the packaging material is first conveyed and positioned by a series of rollers, and then made into bags of a specific shape by the bag maker. At the same time, the material is accurately filled into the bag through a special conveying and metering system. Finally, the bag is sealed by a sealing device and output to the next production link.
Product parameters:
Model: DY-L420, DY-L520, DY-L720, DY-L900, DY-L1200
Film width: max 420, max 520, max 720, max 900, max 1200
Bag length: 80-300, 80-350, 100-500, 100-600, 1000
Bag width: 60-200, 100-250, 180-350, 260-430, 290-580
Film diameter: max 320, max 320, max 320, max 400, max 400

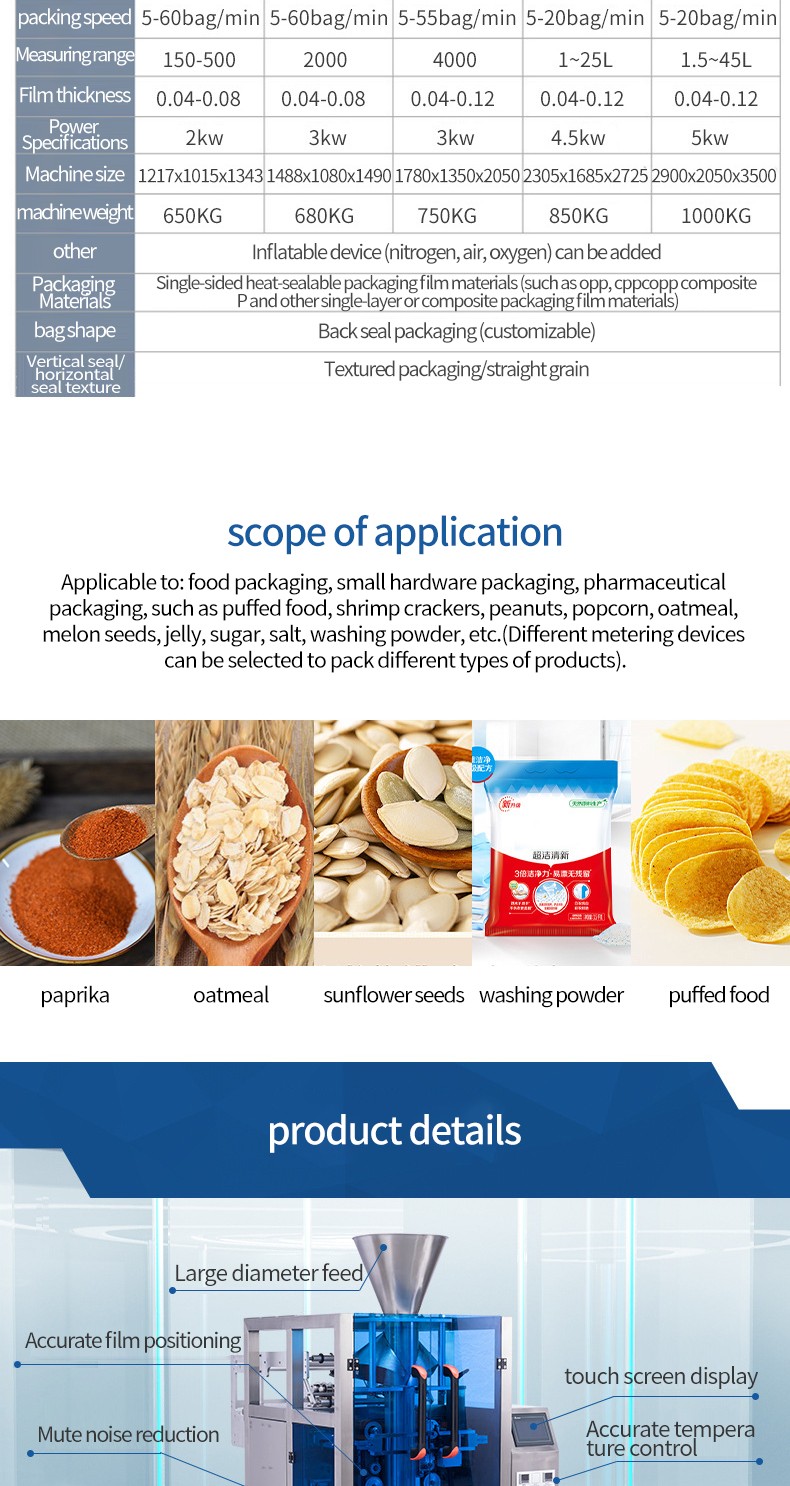

packing speed：5-60bag/min，5-60bag/min，5-55 bags/min，5-20bag/min，5-20bag/min
Measuring range：150-500，2000，4000，1~25L，1.5~45L
Film thickness：0.04-0.08，0.04-0.12，0.04-0.08，0.04-0.12，0.04-0.12
Power Specifications：2kw，3kw，3kw，4.5kw，5kw
Machine size：1217x1015x1343，1488x1080x1490，1780x1350x2050，2305x1685x2725，2900x2050x3500
machineweight：650KG，680KG，750KG，850KG，1000KG
other：Inflatable device (nitrogen, air, oxygen) can be added
Packaging Materials：Single-sided heat-sealable packaging film materials (such as opp, cppcopp composite Pand other single-layer or composite packaging film materials)
bag shape：Back seal packaging (customizable)
Vertical seal/ horizontal seal texture：Textured packaging/straight grain
scope of application
Applicable to: food packaging, small hardware packaging, pharmaceutical packaging, such as puffed food, shrimp crackers, peanuts, popcorn, oatmeal, melon seeds, jelly, sugar, salt, washing powder, etc. (Different metering devices can be selected to pack different types of products).
It uses advanced PLC (Programmable Logic Controller) or touch screen control system. Operators can set various parameters such as packaging speed, bag length, metering parameters, temperature, etc. through the intuitive operation interface. At the same time, the control system also has fault diagnosis and alarm functions, which can promptly remind operators of equipment problems and facilitate rapid maintenance.
The machine body adopts a solid metal structure to ensure the stability of the equipment at high speed. The transmission system consists of a motor, a reducer, a timing belt, a chain, etc., which ensures precise synchronization between various working parts and achieves a stable packaging process.
It has a friendly human-machine interface, which is easy for operators to use. The equipment structure is reasonably designed, easy to disassemble and clean, convenient for daily maintenance and maintenance, and reduces the maintenance cost and downtime of the equipment.
Equipped with complete safety protection devices, such as protective doors, emergency stop buttons, light curtain sensors, etc., effectively ensure the safety of operators during the operation of the equipment.
With the help of advanced communication technology, we can provide you with remote technical guidance. When you encounter a problem, you only need to contact our technicians through telephone, video call, etc. They can understand the equipment status in real time, guide you to operate, quickly solve the problem, and reduce equipment downtime.
We have established a complete rapid response mechanism. Once we receive your maintenance request, we will contact you in the shortest possible time to understand the details. Our maintenance personnel strictly follow the maintenance process and standard operating specifications to ensure that each maintenance meets high quality standards. After the maintenance is completed, the equipment will be fully tested and debugged to ensure that the equipment performance is fully restored to normal and avoid secondary failures.
