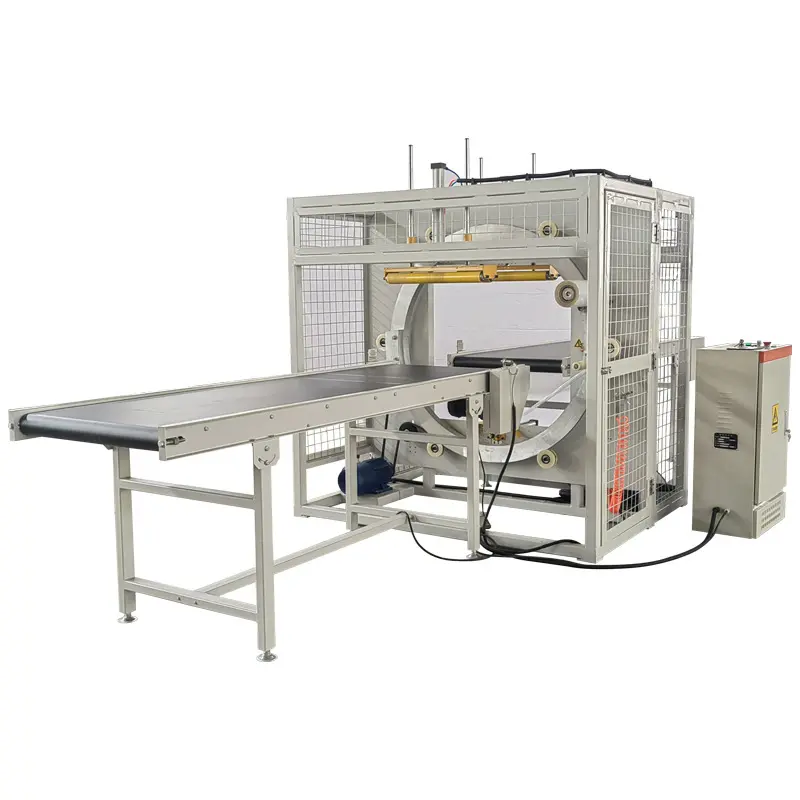

Working principle of High speed horizontal winding machine

The high-speed horizontal winding machine drives the winding shaft to rotate at high speed through a motor-driven high-precision transmission system. After the winding material is drawn out from the pay-off device, the tension is precisely controlled by the tension control system and then evenly wound on the rotating winding shaft or mold. During the winding process, the wire arrangement system accurately controls the lateral movement of the material according to the preset program to achieve a tight and neat wire arrangement effect. For example, in cable production, the insulating material is orderly wound around the conductor according to the set pitch and angle.
