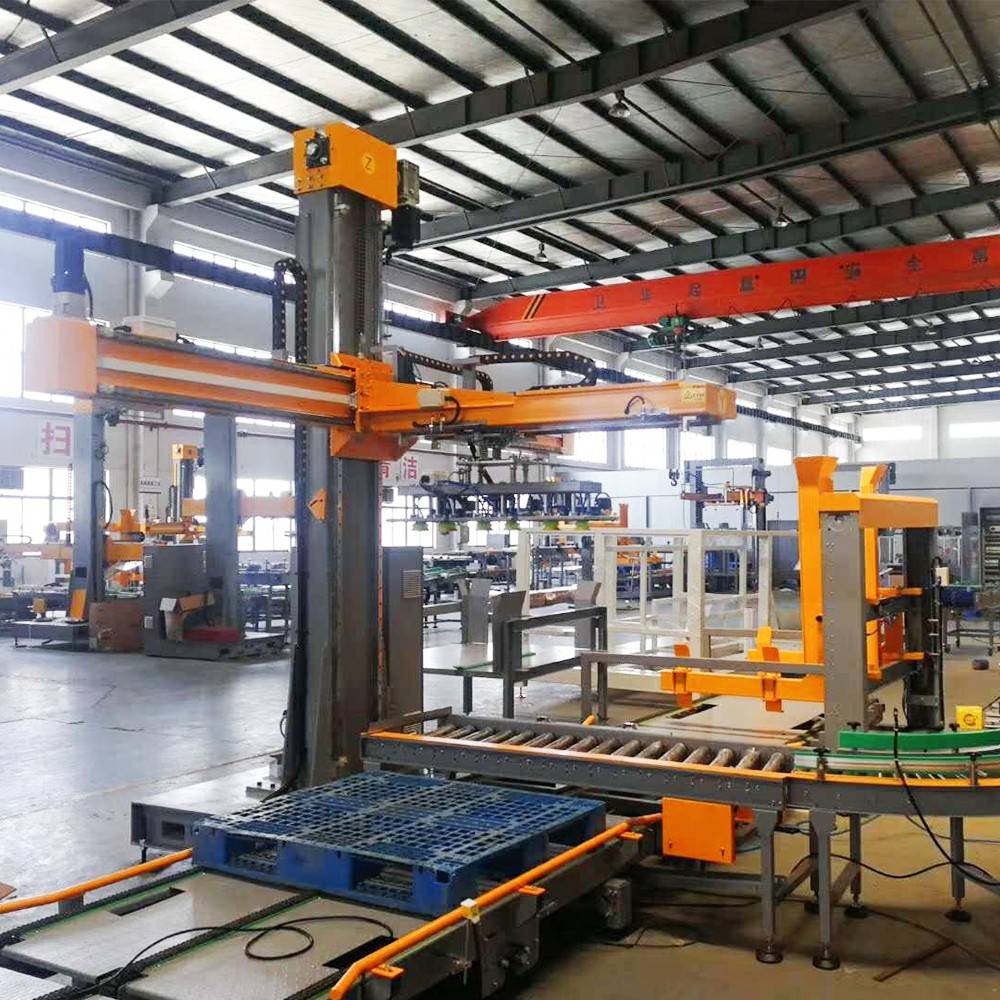

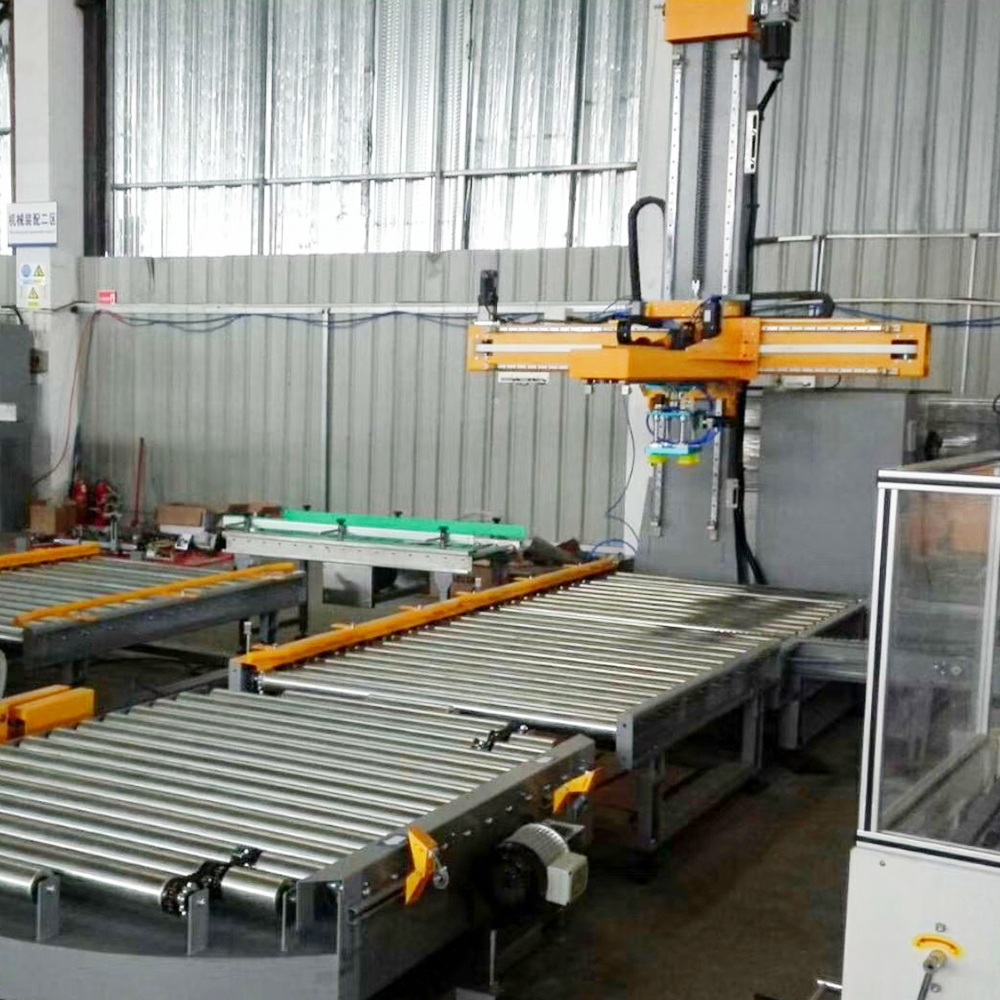

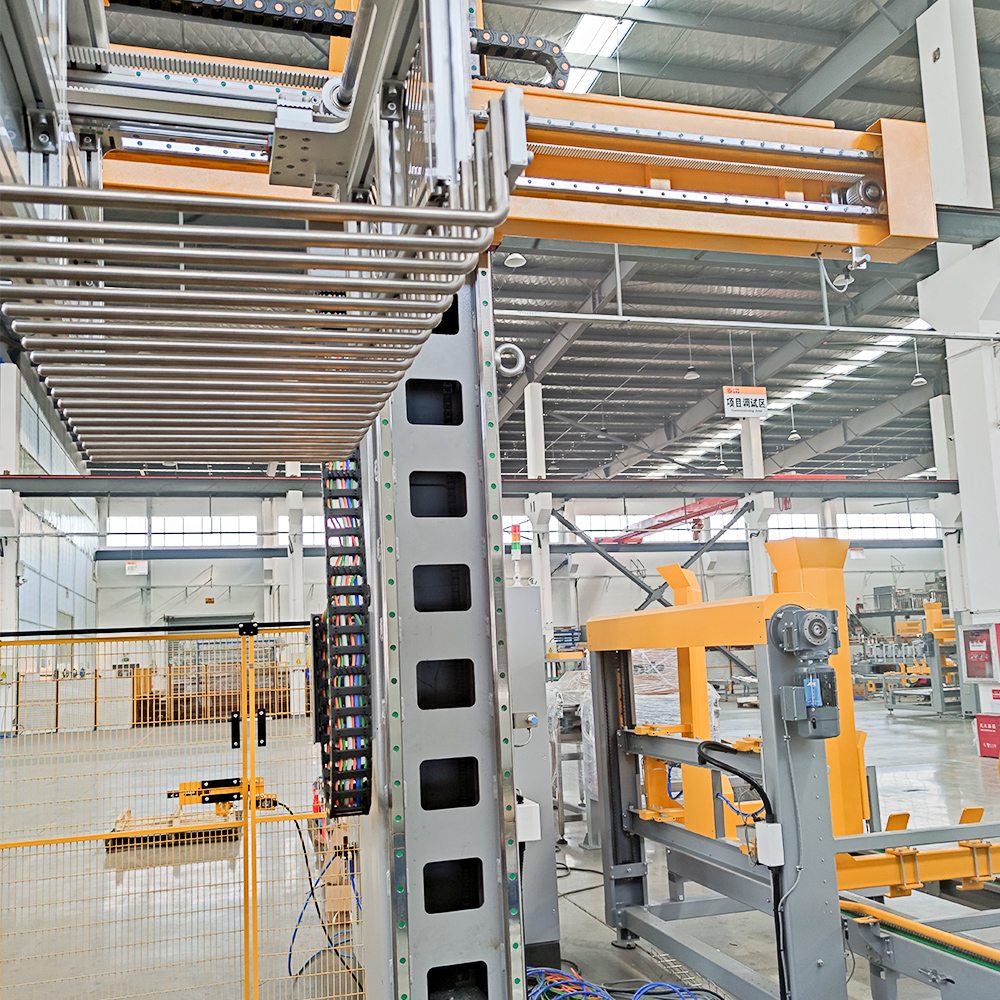

Fully automatic pallet depalletizer
1. It can complete the depalletizing operation of palletized goods at a very high speed, and its work efficiency is greatly improved.
2. It can achieve 24-hour uninterrupted operation, and it can continue to work as long as there are pallets that need to be depalletized.
3. It can perfectly connect with other production equipment and conveying systems to automatically transport the depalletized goods to the designated location.
4. Workers only need to perform some simple monitoring and maintenance work, which greatly reduces labor intensity and improves work safety and comfort.
5. The use of advanced sensors and control systems can accurately identify the position, shape and size of pallets and goods to ensure the accuracy and stability of the depalletizing process.

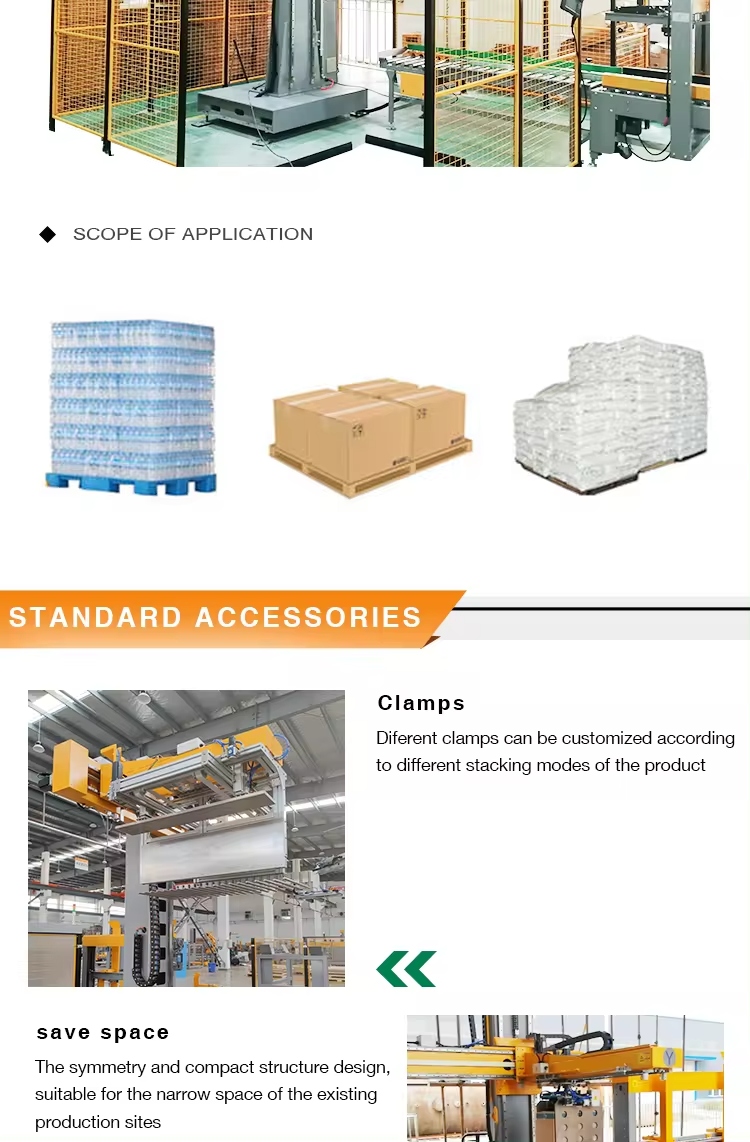

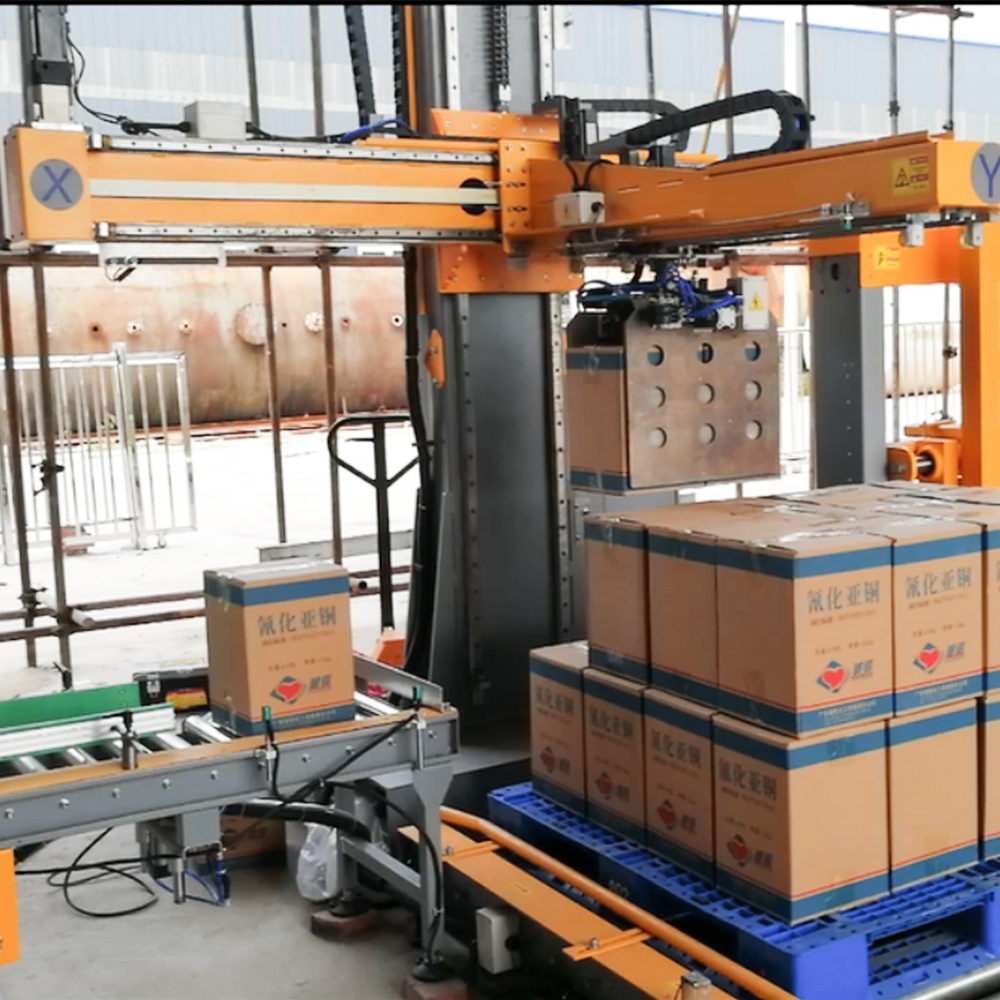

It can automatically disassemble the goods stacked on the pallet and can handle various types of items such as cartons, bags, bottles, barrels, etc.

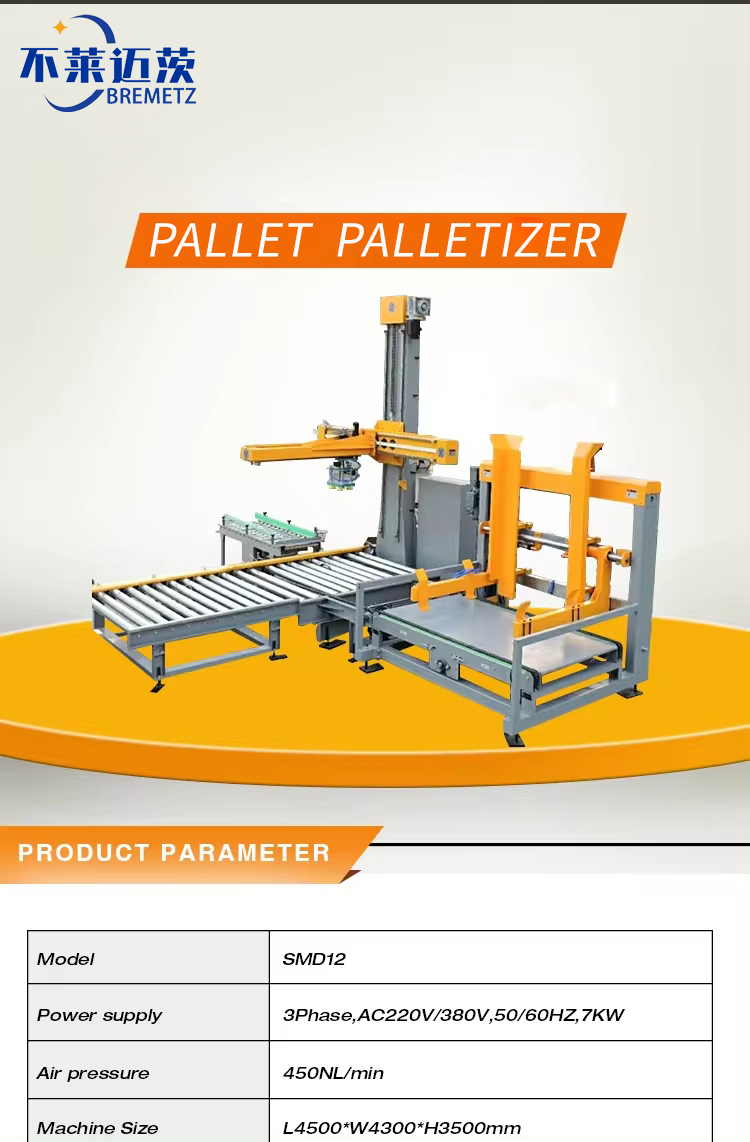

Model：SMD12
Power supply：3Phase, AC220V/380V,50/60HZ, 7KW
Air pressure：450NL/min
Machine Size：L4500*W4300*H3500mm

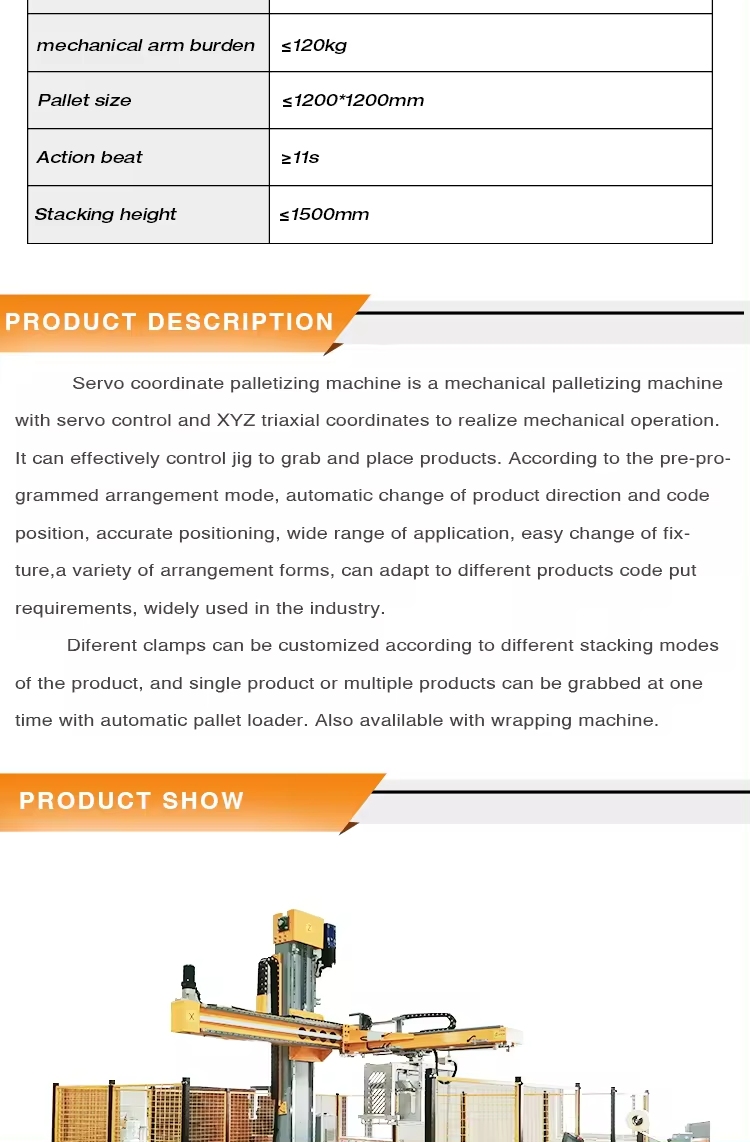

mechanical arm burden：≤120kg
Pallet size：≤1200*1200mm
Action beat：≥11s
Stacking height：≤1500mm

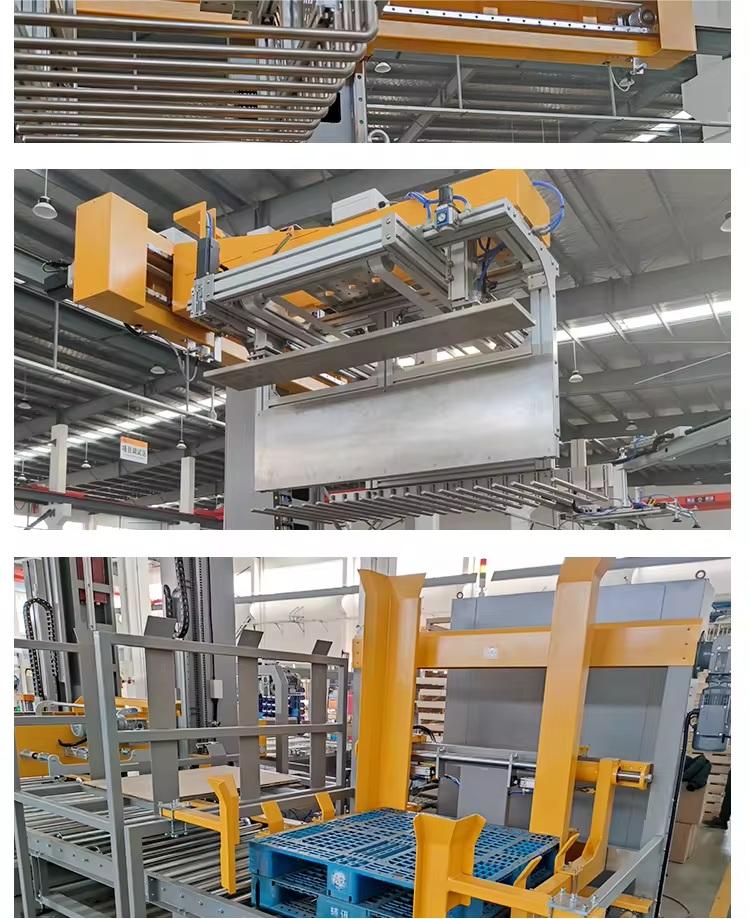

Equipped with high-precision sensors and advanced robotic arms or grabbing devices, it can accurately identify the position and shape of goods, accurately grab and place goods, and ensure the accuracy and stability of the depalletizing process.
After depalletizing, the empty pallets can be automatically sorted, stacked or transported to a designated location for subsequent use.
It can flexibly adjust parameters such as depalletizing speed, gripping force, and cargo placement position according to different cargo types, sizes, weights, and depalletizing requirements.
Equipped with light curtain sensors, safety fences, emergency stop buttons, overload protection devices and other safety protection devices to ensure the safety of operators and equipment.
In warehouses and distribution centers, various goods are depalletized to improve logistics loading and unloading efficiency and achieve rapid turnover of goods.
