Fully automatic spider-hand packing robot

The spider-arm packing robot has the advantages of high efficiency, precision, flexibility, safety and simplicity. It is an ideal choice in modern packing production and can help companies improve production efficiency, reduce costs and improve packing quality.

  Contact Now E-Mail Telephone WhatsApp
Product Details

The Spider-Hand Packing Robot is an intelligent automated packing device that uses advanced machine vision and robotics technology to automatically identify items of different sizes and shapes and pack them quickly and accurately.

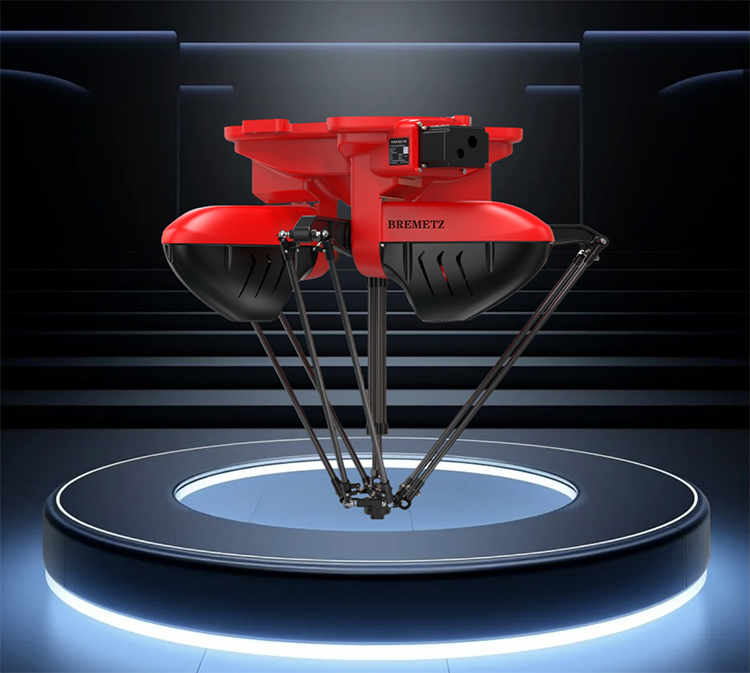

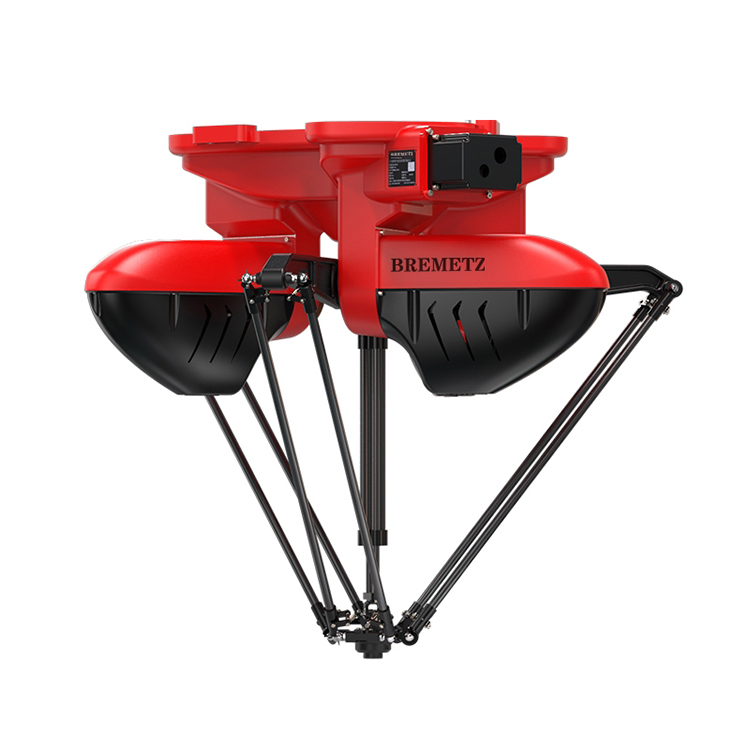

Spider-arm packing robot

BremetzL1003A is the first four axis robot developed by BORUNTE for assembling, sorting, and other application scenarios of light and small scattered materials. It can be paired with vision and has a 1000mm arm span, with a maximum load of 3kg.

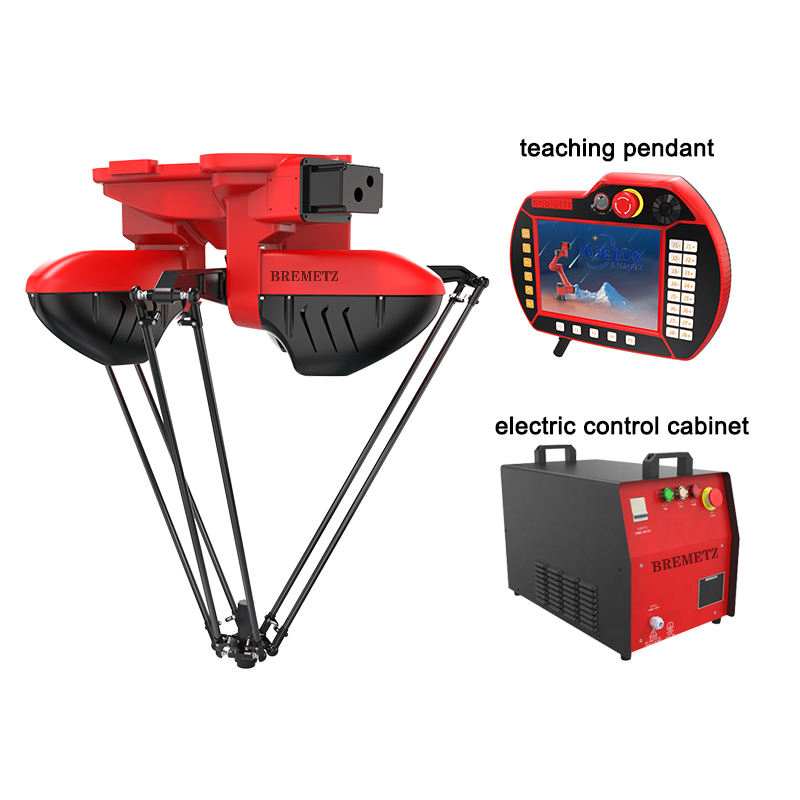

Spider-arm packing robot

● The structure of servo motor with RV reducer and harmonic reducer, which has small volume, large working range, fast speed andhigh precision, and can be integrated with turntable, slide conveyor chain system and other auxiliary equipment.

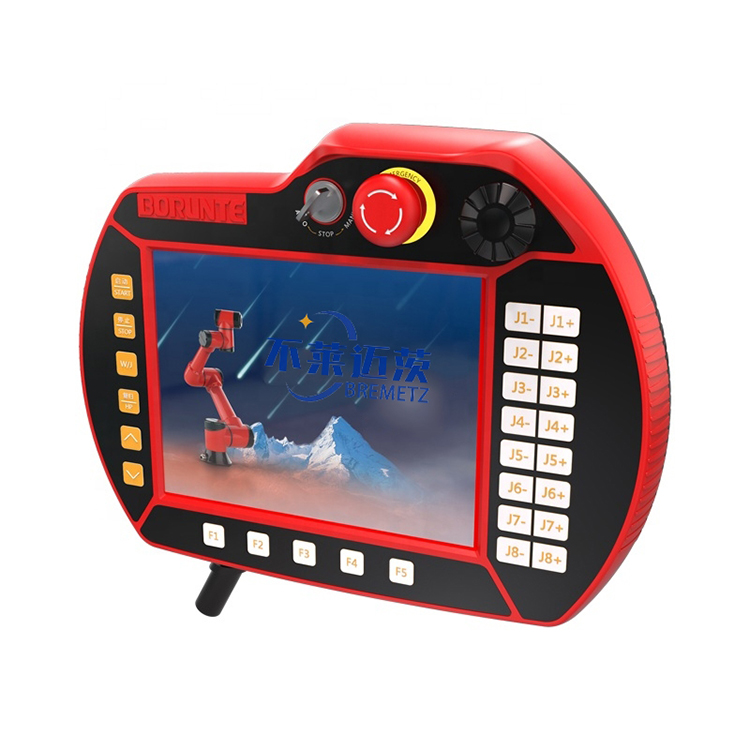

● The handheld dialogue operator of the control system is simple and easy to learn, which is very suitable for production.

● The robot body adopts partial internal wiring, which is safe and environmentally friendly

Spider-arm packing robot

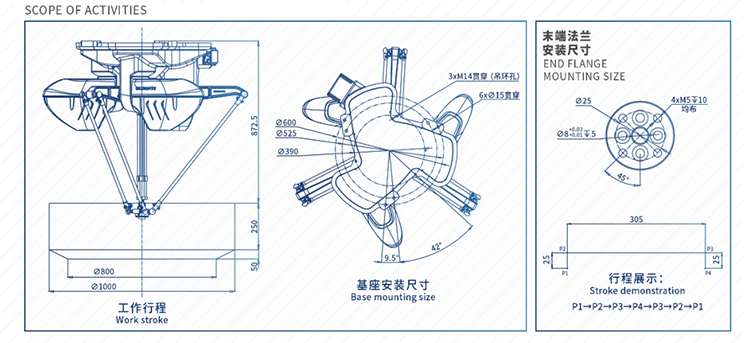

Parameters of fully automatic spider hand packing Model of fully automatic spider hand packing: BremetzL1003A Axis of fully automatic spider hand packing: 4 axes Load capacity of fully automatic spider hand packing: 3kg IP code of fully automatic spider hand packing: IP40 Repetitive positioning accuracy of fully automatic spider hand packing: ±0.1mm Angular repetitive positioning accuracy of fully automatic spider hand packing: ±0.5° Maximum arm span of fully automatic spider hand packing: 1000mm Weight of fully automatic spider hand packing: 104kg

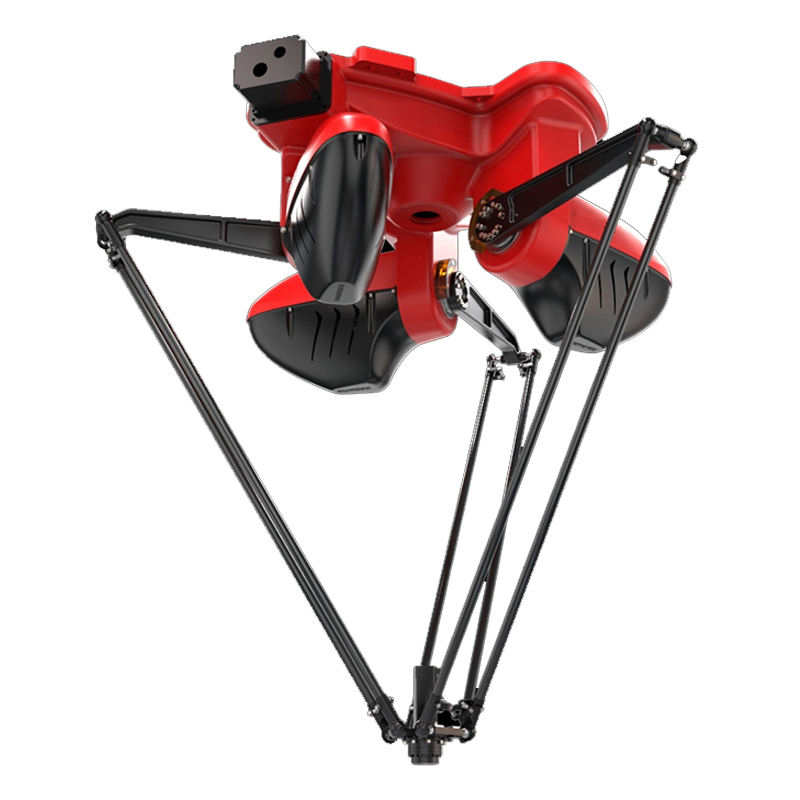

Spider-arm packing robot

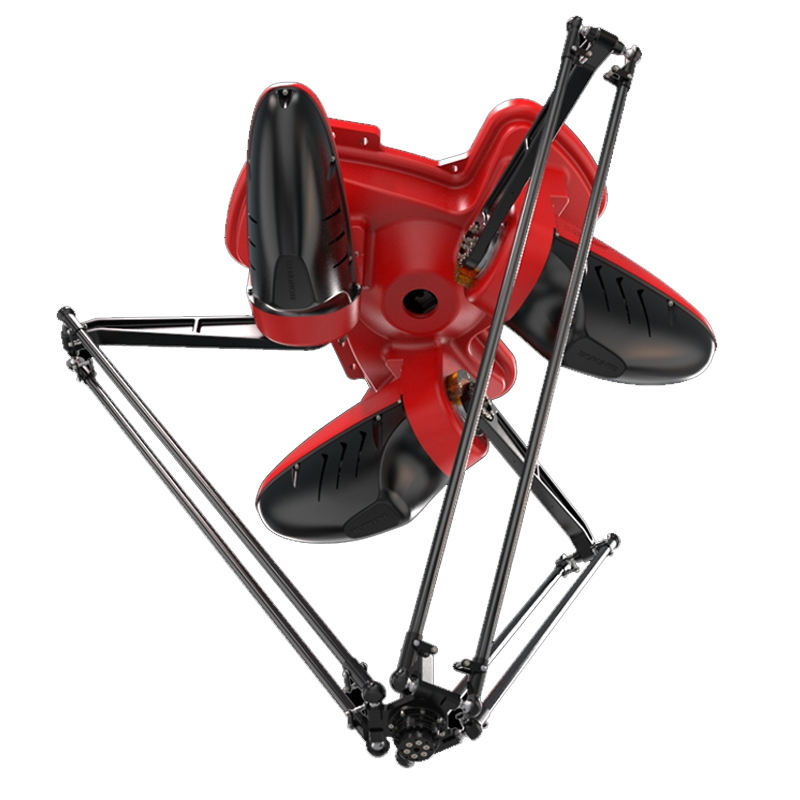

Spider-arm packing robot

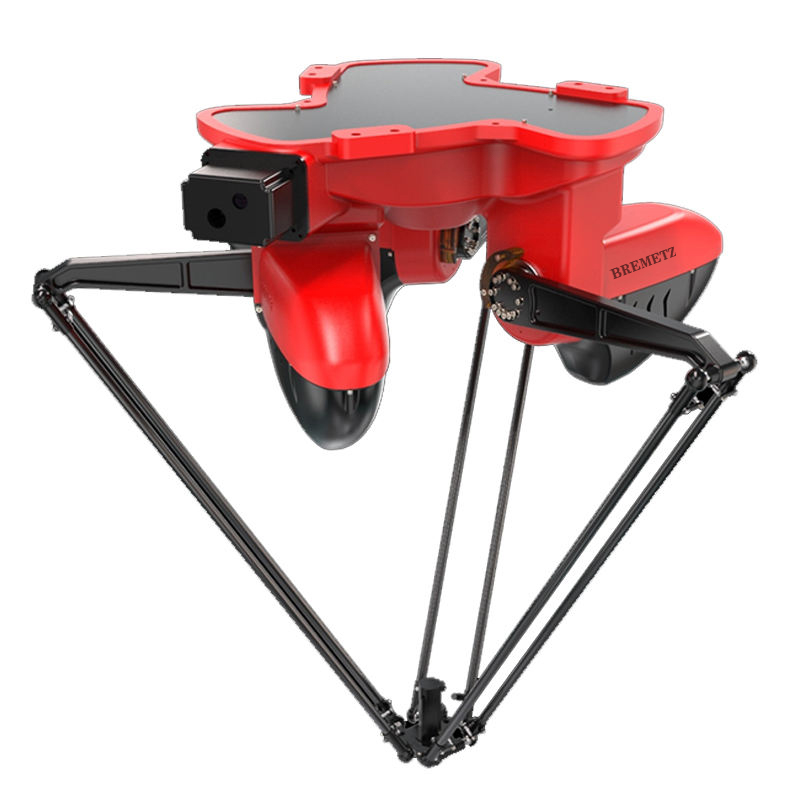

Spider-arm packing robot
