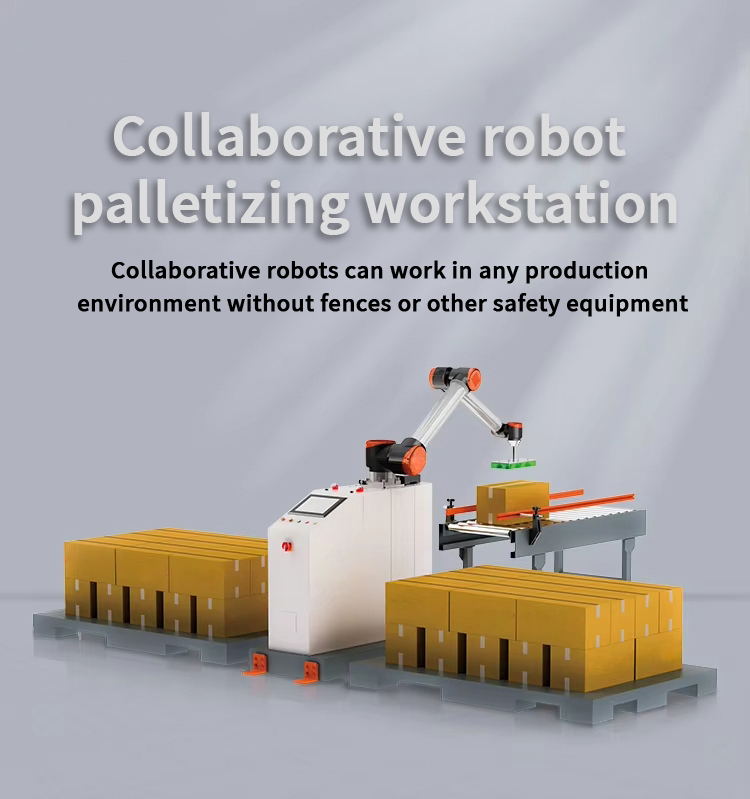

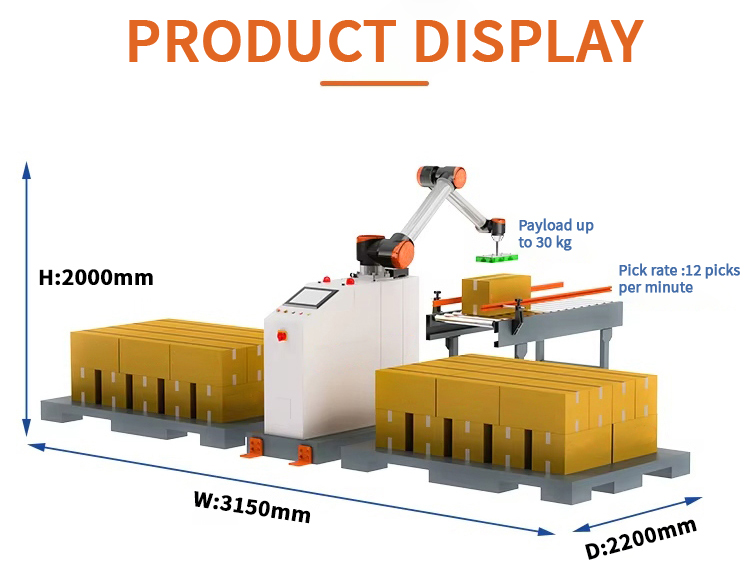

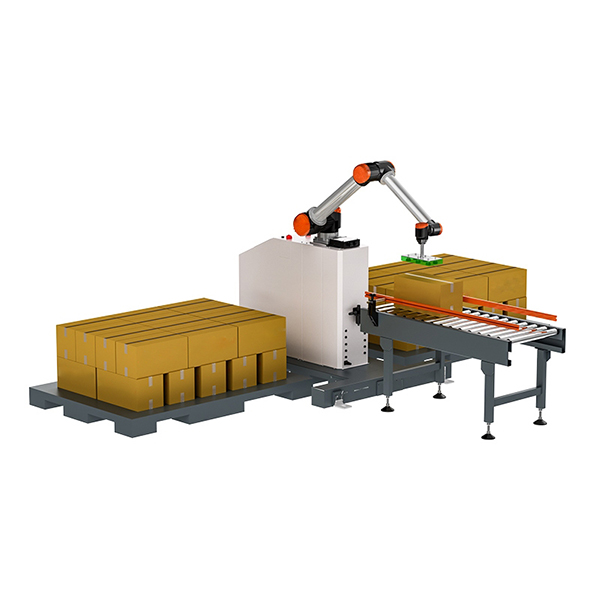

Automatic food collaborative palletizing robot

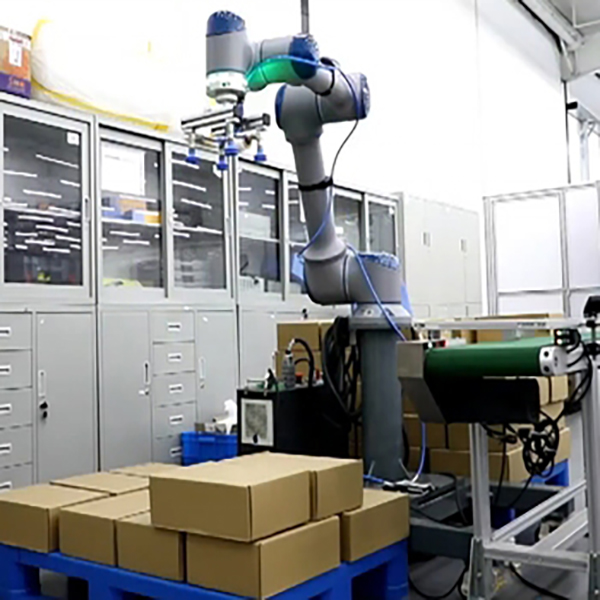

In the food packaging line, food palletizing collaborative robots can efficiently and accurately complete the palletizing work of various foods with their precise vision system and rapid response ability. Its collaborative safety features allow operators to work nearby without safety hazards. In warehouse storage scenarios, robots improve space utilization through optimized trajectory planning and flexible operation capabilities, saving a lot of labor and time costs for enterprises.
With its high efficiency, precision, flexibility and safety, the food collaborative palletizing robot provides a reliable solution for the automated production of the food industry, helping enterprises to improve production efficiency, reduce labor costs and improve product quality.

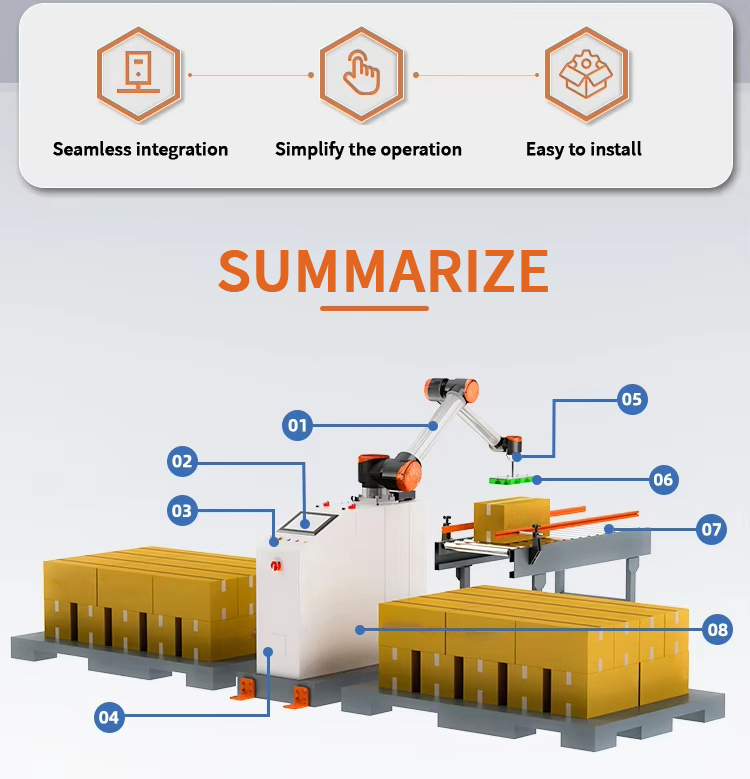

01 Robot 6 degrees of freedom collaborative robot | 05 End buffer detection device Avoid damage by misoperation |
| 02 System Simple HMI, easy to operate | 06 Vacuum sucker custom |
03 Button Easy manual operation | 07 Conveyor Carton detection, classification and stacking |
04 Control Cabinet With open interface, easy to expand management | 08 Vacuum generator Vacuum gauge detection to avoid empty boxes |
| Payload | 20Kg(up to 30kg) |
| Working space diameter | 1650mm |
| Pallet size | 1200*1200*200(max) |
| Vertical Stroke | 1700mm(up to 2000mm) |
| Palletizing speed | 10pcs/min |
| Air consumption | 440L/min |
| Repeatability accuracy | ±0.02mm |
| Communication | EtherCAT、10 |
| IP grade | IP65 |
| Temperature | 0~50C |
| Max power | 2500W |
| Rated voltage | 220V |
| Weight | 350Kg |
| Arca | 1260*780 (not including pallet and conveyor) |
