High speed radial cylinder winding machine
1. High-speed winding capability: Equipped with high-performance motors and advanced transmission systems, it can achieve rapid winding and significantly improve production efficiency.
2. Multi-axis design: Some high-speed radial cylinder winding machines adopt a multi-axis design, which can wind multiple cylinders at the same time, further improving production efficiency.
3. Precision mechanical structure: It adopts high-precision spindle, wire arrangement mechanism and tension control system to ensure that the wires are arranged tightly and neatly during the winding process, and the accuracy of parameters such as wire diameter and number of turns is controlled within a very small range.
4. Advanced control system: Through the advanced CNC system or PLC control system, parameters such as winding speed, tension, and wiring spacing can be accurately controlled.
5. Multiple material winding: not only suitable for common copper wire winding, but also can be used for winding other metal wires, alloy wires and wires made of some special materials.
6. High-quality components: Use high-quality motors, bearings, sensors and other components to ensure the stability and reliability of the equipment under high-speed operation and reduce the probability of failure.
High speed radial cylinder winding machine, the motor drives the main shaft to rotate, driving the cylindrical object to rotate at high speed, and at the same time the wire arrangement mechanism evenly winds the wire on the surface of the cylinder according to the preset wire arrangement spacing and winding method, realizing high-precision winding operation.
High speed and high efficiency: The winding speed is fast, which can significantly improve production efficiency and is suitable for large-scale production needs.
High-precision winding: The use of precision wire arrangement mechanism and tension control system ensures tight and neat winding, high precision of wire diameter, number of turns and other parameters, ensuring consistent product quality.

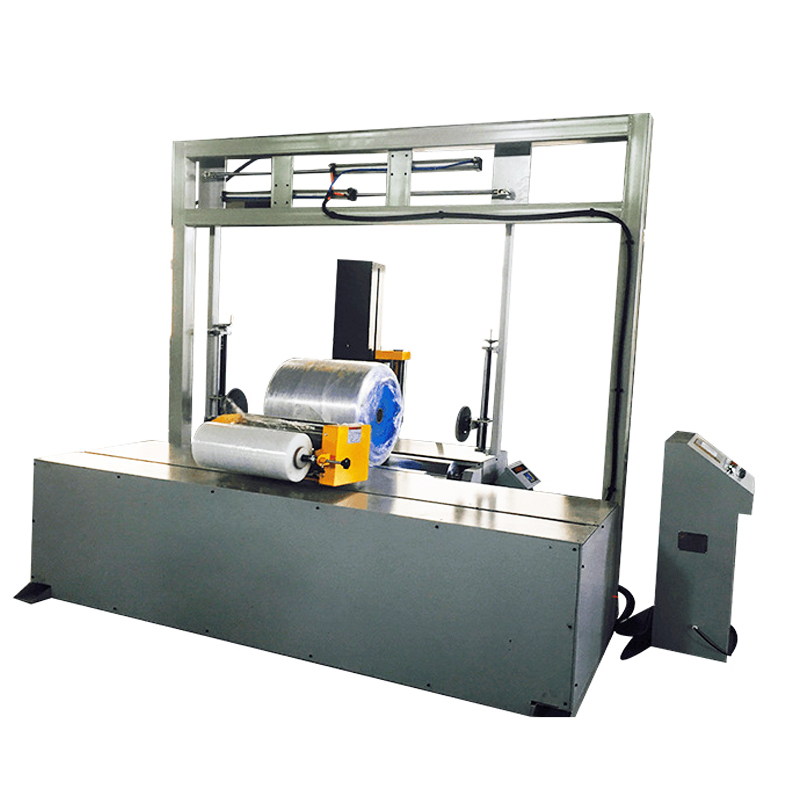

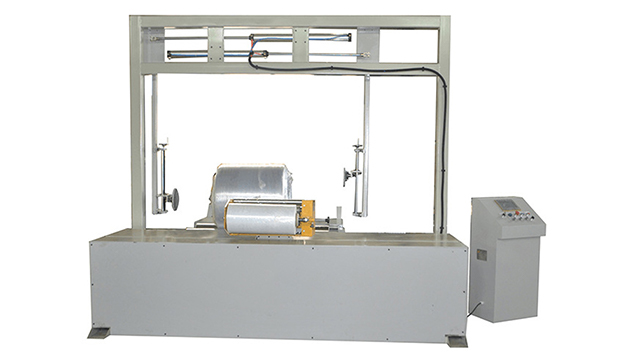

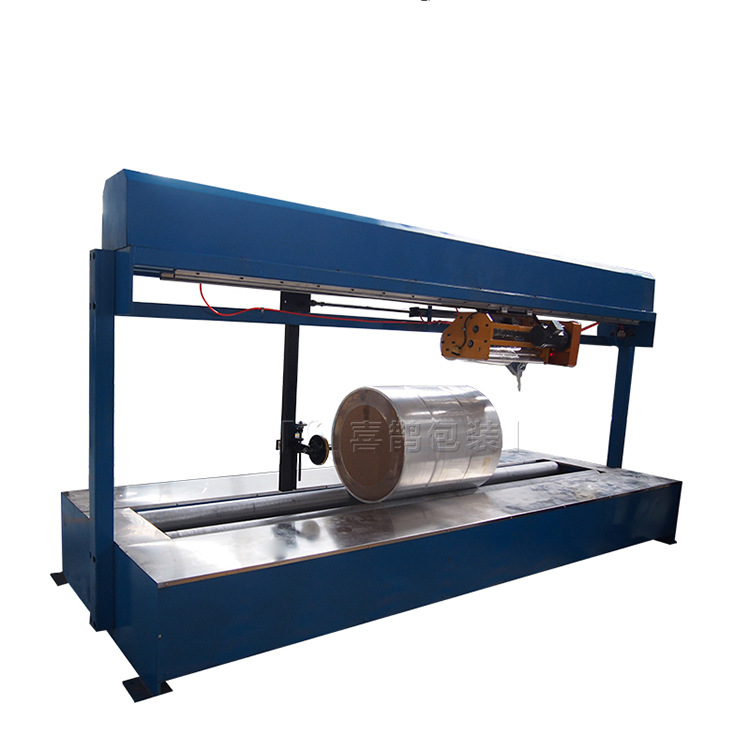

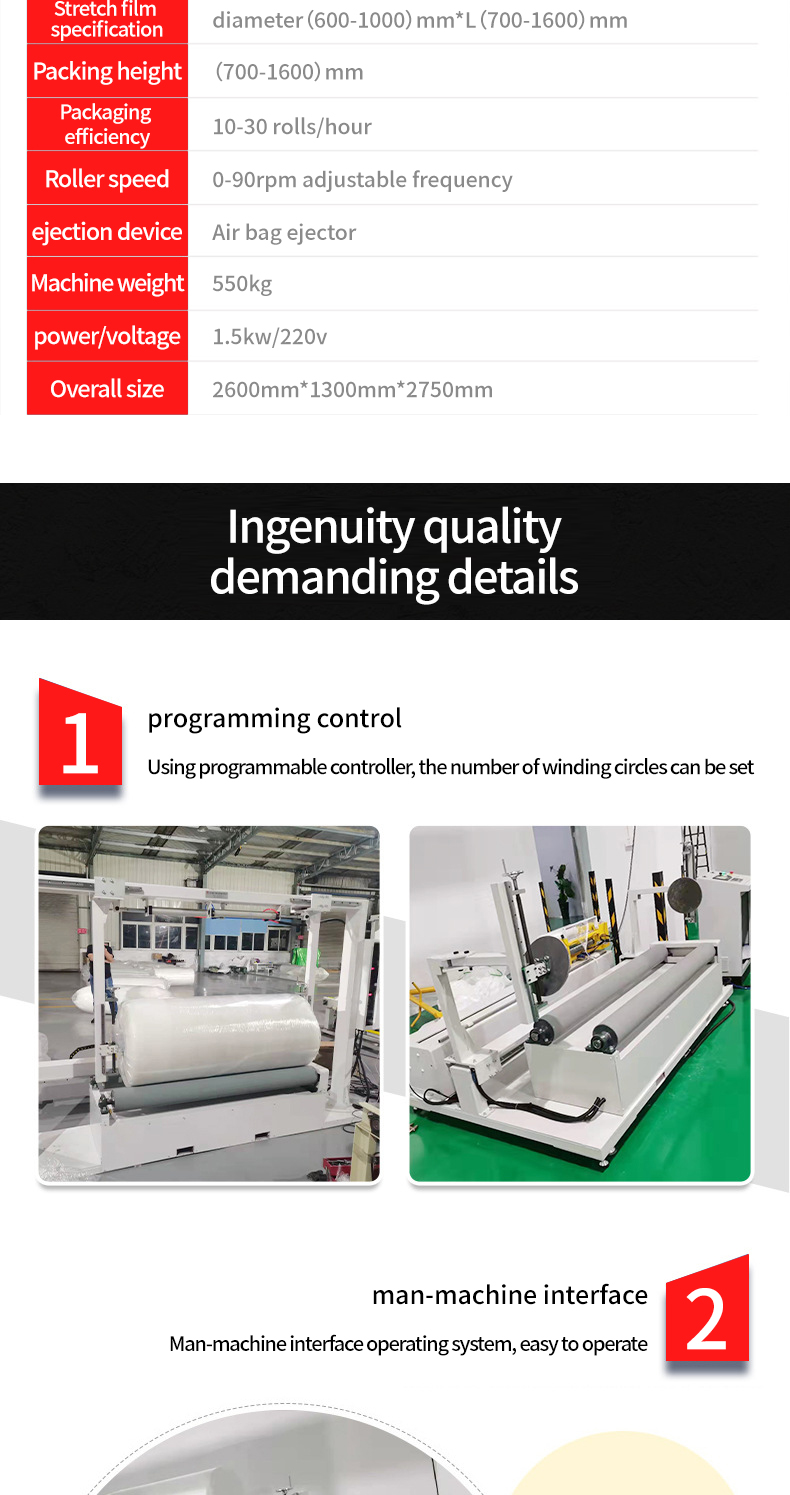

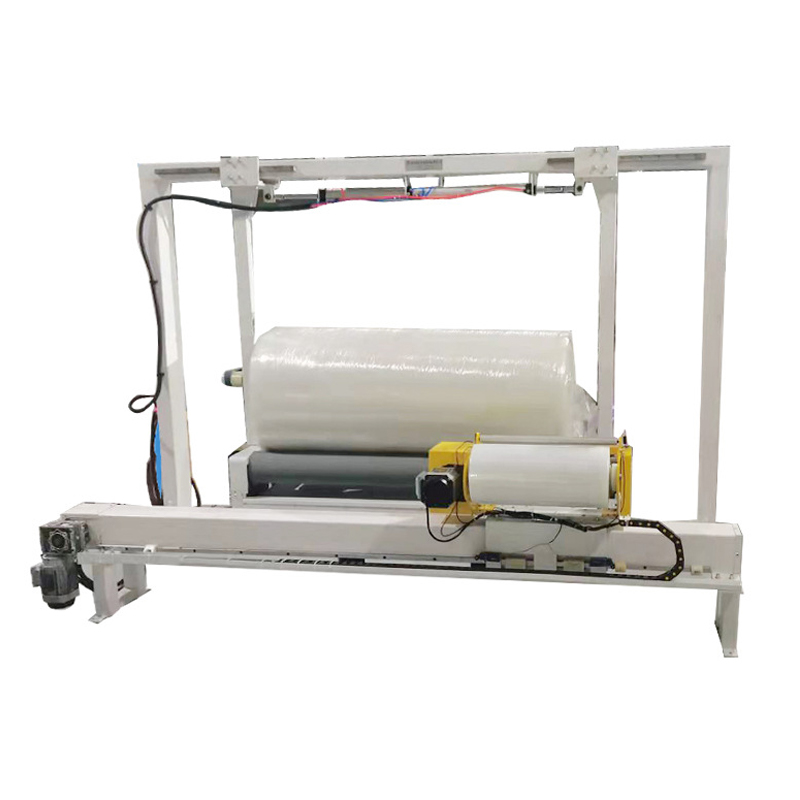

device name：Radial cylinder winding machine
Stretch film specification：diameter (600-1000) mm*L (700-1600) mm
Packing height：(700-1600) mm
Packaging efficiency：10-30 rolls/hour
Roller speed：0-90rpm adjustable frequency
ejection device：Air bag ejector
Machine weight：550kg
power/voltage：1.5kw/220v
Overall size：2600mm*1300mm*2750mm
Wide applicability: It can adapt to cylindrical windings of different diameters, lengths and materials. By replacing the fixture or adjusting the equipment parameters, it can meet the winding requirements of various specifications of products.
Stable and reliable: The mechanical structure of the equipment is solid and stable, and the electrical system uses high-quality components. After strict quality inspection, it has good stability and reliability and can operate continuously for a long time.
The use of advanced CNC or PLC control systems can accurately control the various parameters and processes of winding. Operators can easily set parameters such as winding speed, wire arrangement spacing, number of turns, etc. through an intuitive operation interface. At the same time, the system also has a variety of practical automation functions such as automatic wire arrangement, automatic tension adjustment, automatic counting, etc., which greatly improves production efficiency and consistency of product quality.
Equipped with reliable clamping devices, such as pneumatic clamping, hydraulic clamping or mechanical clamping, the cylinder can be firmly fixed, and the clamping force can be adjusted according to the material of different cylinders and winding requirements, effectively preventing the cylinder from shifting or shaking during the winding process, ensuring the winding quality.
The advanced transmission methods such as screw drive, gear drive or synchronous belt drive are used to ensure the accuracy and stability of the wire arrangement. The wire arrangement spacing can be flexibly adjusted according to different winding requirements, and it can still maintain good performance under high-speed winding conditions to ensure the neatness and tightness of the winding.
Through telephone, email, online customer service and other means, we provide customers with timely and effective remote technical support, answer various questions encountered by customers during use, help customers find out the cause of the fault, provide solutions, optimize the operating parameters of the equipment, and ensure the normal operation of the equipment.
With the continuous development of technology and changes in customer needs, we regularly provide customers with software upgrade services for equipment control systems to improve the performance, function and stability of equipment, add new winding modes and process parameters, so that customers can better adapt to market changes and production needs and improve product competitiveness.
