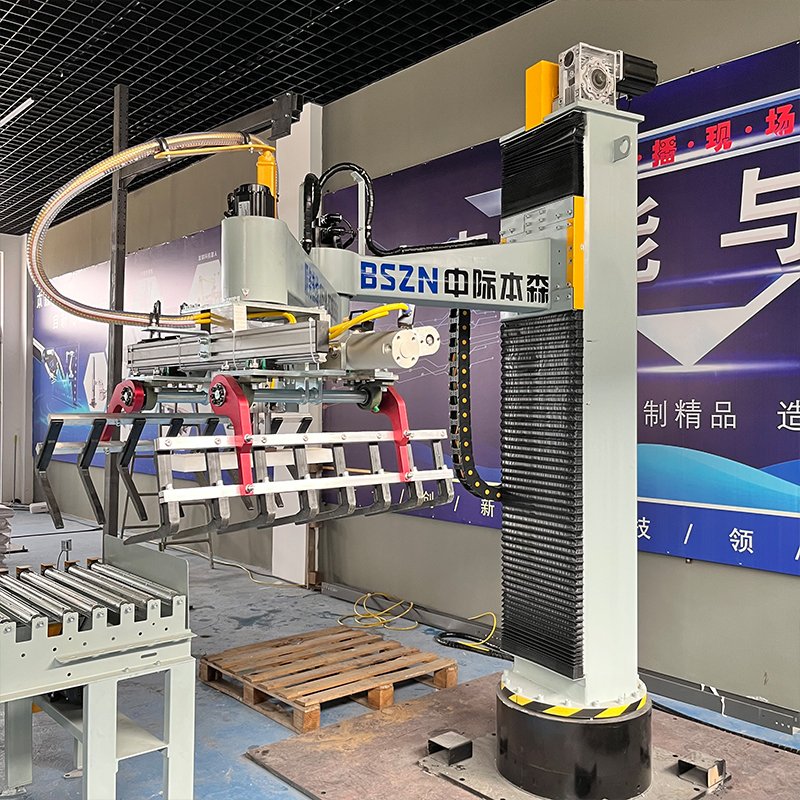

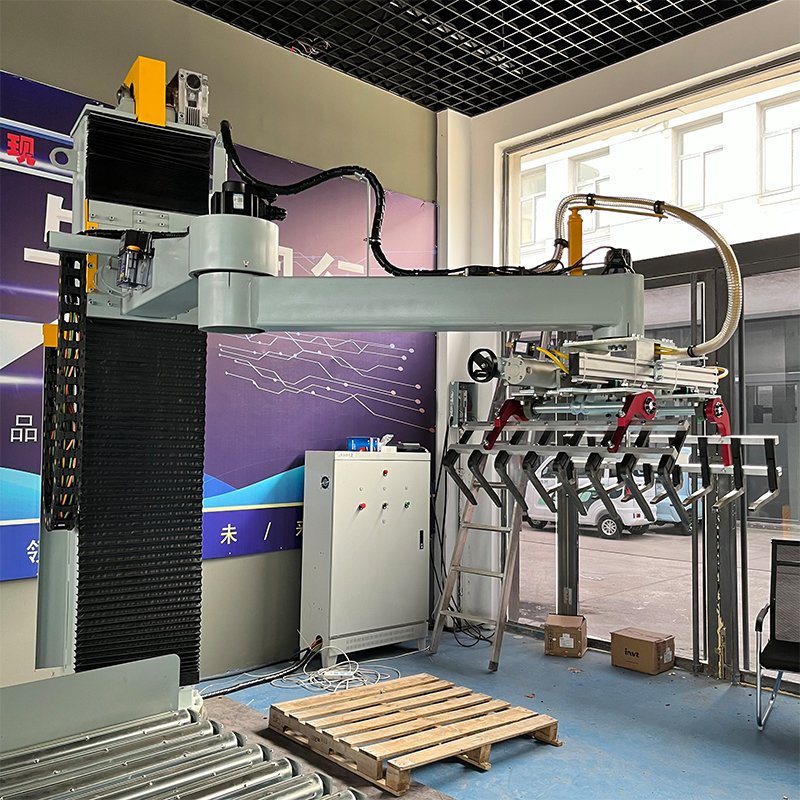

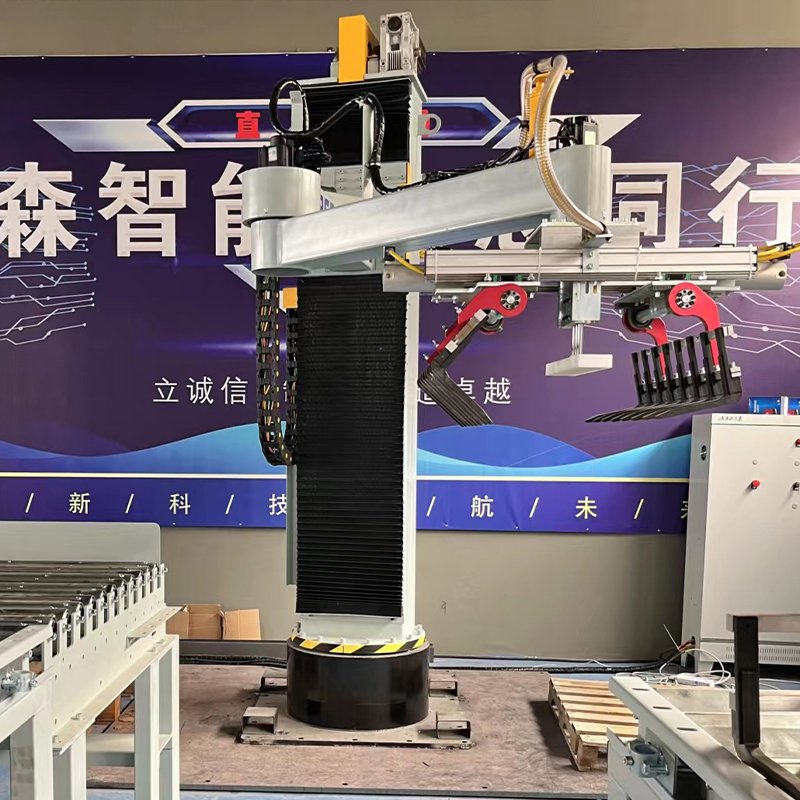

Column automatic palletizer 20kg, 30kg, 40kg, 50kg

1. High speed: It can quickly complete the grabbing, handling and stacking of materials, and handle a large amount of goods in a short time.

2. Uninterrupted operation: It can achieve 24-hour uninterrupted work, is not affected by factors such as manual fatigue and rest, and can continuously and stably perform palletizing operations to ensure the continuity of production.

3. Accurate positioning: Through advanced sensors, control systems and precise mechanical structures, the goods can be accurately placed in the designated position.

4. Good consistency: The action and position of each palletizing are very precise and consistent, and there will be no uneven and unstable palletizing caused by individual differences, fatigue and other factors during manual palletizing.

5. Adapt to a variety of goods: For goods of different shapes, sizes and weights, the heavy-duty automatic palletizer can adapt by replacing the grabbing device or adjusting the program parameters, etc., and has strong versatility and flexibility.

6. Intelligent management: Equipped with advanced control systems and monitoring systems, it can monitor the operating status of the equipment in real time, which is convenient for managers to conduct remote monitoring and management.

7. Convenient maintenance: The mechanical structure is reasonably designed, the parts are highly standardized, and they are easy to replace and repair.

Contact Now E-Mail Telephone WhatsApp

Product Details

The heavy-duty automated palletizer is a highly efficient automated equipment designed for heavy-duty cargo palletizing tasks. It integrates the technical achievements of various fields such as advanced mechanical engineering, automated control, sensor technology and computer programming, and can play a key role in multiple links such as industrial production and logistics warehousing, greatly improving the efficiency, accuracy and safety of heavy-duty cargo palletizing.


The fuselage frame is made of high-strength steel and has undergone special welding and reinforcement processes to ensure that it can withstand the huge pressure and impact generated by heavy-loaded goods during the stacking process. The fuselage structure design conforms to the principles of ergonomics and mechanics. While ensuring stability, it also takes into account the space occupation and layout rationality of the equipment.

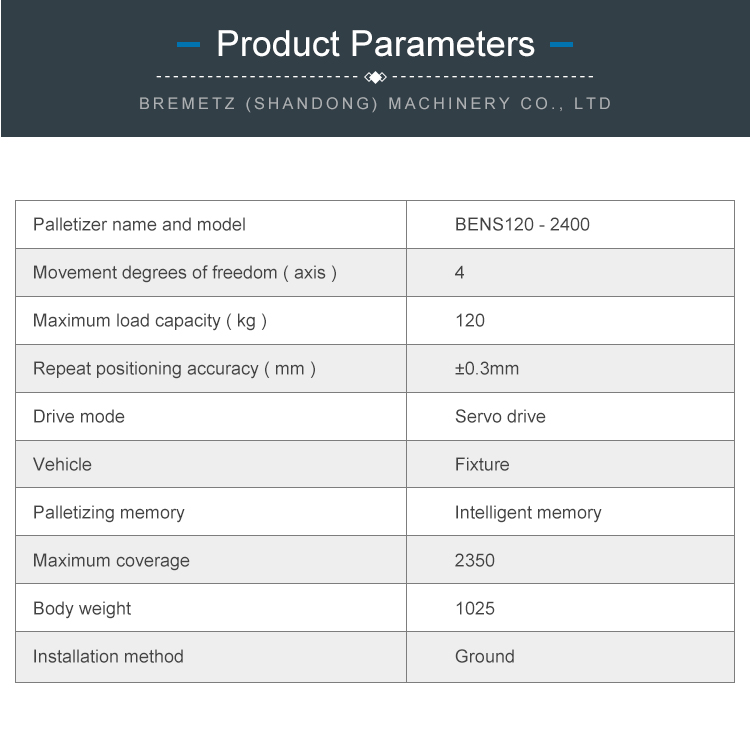

Technical parameters: Palletizer name and model: BENS120-2400; Freedom of motion (axis) : 4; Maximum load (kg) :120; Repeated positioning accuracy (mm) : ± 0.3mm; Drive mode: servo drive; Vehicles: fixtures; Palletizing memory: intelligent memory; Maximum coverage: 2350; Weight: 1025; Installation method: ground.


Equipped with high-load-capacity joint components, such as large reducers and high-strength bearings, these joints can achieve precise angle control and large torque output, ensuring that the robotic arm moves accurately and smoothly when carrying heavy loads.
