Professional collaborative palletizing robot
1. High-precision positioning: Equipped with advanced sensors and precise control systems, it can identify and locate the position, shape and size of goods with high precision. Goods can be placed accurately in designated locations to ensure the neatness and stability of palletizing, effectively avoiding problems such as collapse of goods due to irregular palletizing during storage and transportation.
2. Efficient operation speed: With fast action execution capabilities, the movement speed of its robotic arm and the frequency of grabbing and placing goods are optimized.
3. Collaborative safety with humans: It has a complete safety protection mechanism, such as collision detection sensors, force feedback systems, etc. It can sense the surrounding environment in real time, and once a possible collision risk is detected, it will immediately stop or adjust the action to ensure the safety of the operator.
4. Collaborative work with other equipment: It can achieve seamless docking with other production and logistics equipment such as conveying systems, packaging machinery, and warehouse management systems.
5. Adaptation to cargo diversity: Whether it is regular-shaped boxed goods, bagged goods, or irregular-shaped special-shaped goods, effective palletizing can be achieved by replacing different end effectors (such as grippers, suction cups, etc.) or adjusting the program.
6. Environmental adaptability: It can operate stably under different working environment conditions, including changes in temperature, humidity, dust and other factors. Whether in a normal temperature production workshop, a low temperature refrigerated warehouse or a high temperature processing environment, it can work normally, providing convenience for enterprises in various production and warehousing scenarios.
7. High-quality mechanical structure: The robot arm and fuselage are constructed with sturdy and durable materials and advanced manufacturing processes, with good rigidity and stability. It can withstand long-term and high-intensity workloads.
The professional collaborative palletizing robot is an intelligent device that integrates advanced technologies and is designed for efficient and precise palletizing operations. It integrates the innovative achievements of mechanical engineering, automation control, artificial intelligence and other fields, and has demonstrated excellent performance in industrial production and logistics warehousing, becoming an ideal choice for modern enterprises to improve palletizing efficiency and quality.

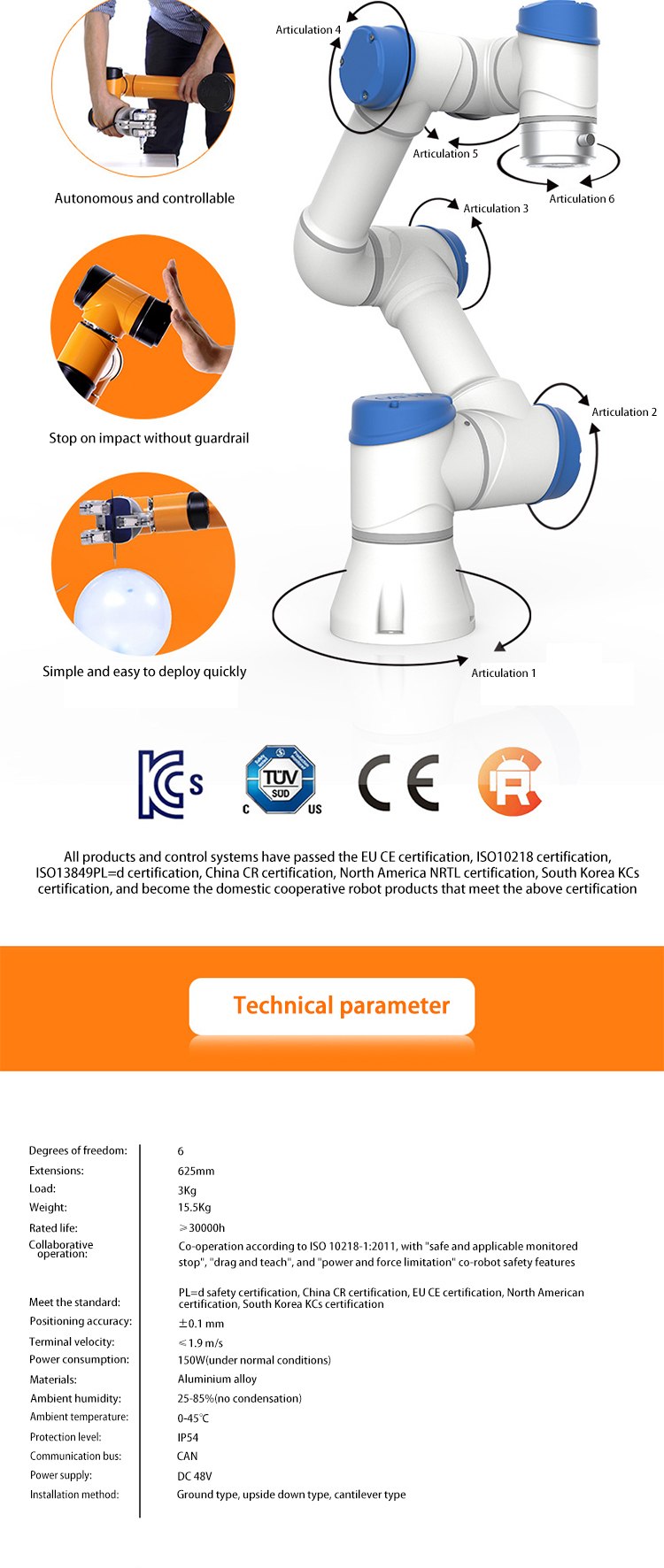

Degrees of freedom: 6, Extension: 625 mm, Load: 3 kg, Weight: 15.5 kg, Rated life: >30,000 hours, Collaborative operation: Collaborative according to ISO 10218-1:2011, with "safe and applicable monitored stop", "drag and teach" and "power and force limitation" collaborative robot safety functions, in line with standards: PL=d safety certification, China CR certification, EU CE certification, North American certification, South Korea KCs certification, positioning accuracy: ±0.1 mm, terminal speed: 1.9 euros/second, power consumption: 150W (under normal circumstances), material: aluminum alloy, ambient humidity: 25-85% (no condensation), ambient temperature: 0-45℃, protection level: IP54, communication bus: energy, power supply: DC 48V, installation method: ground type, inverted type, cantilever type.

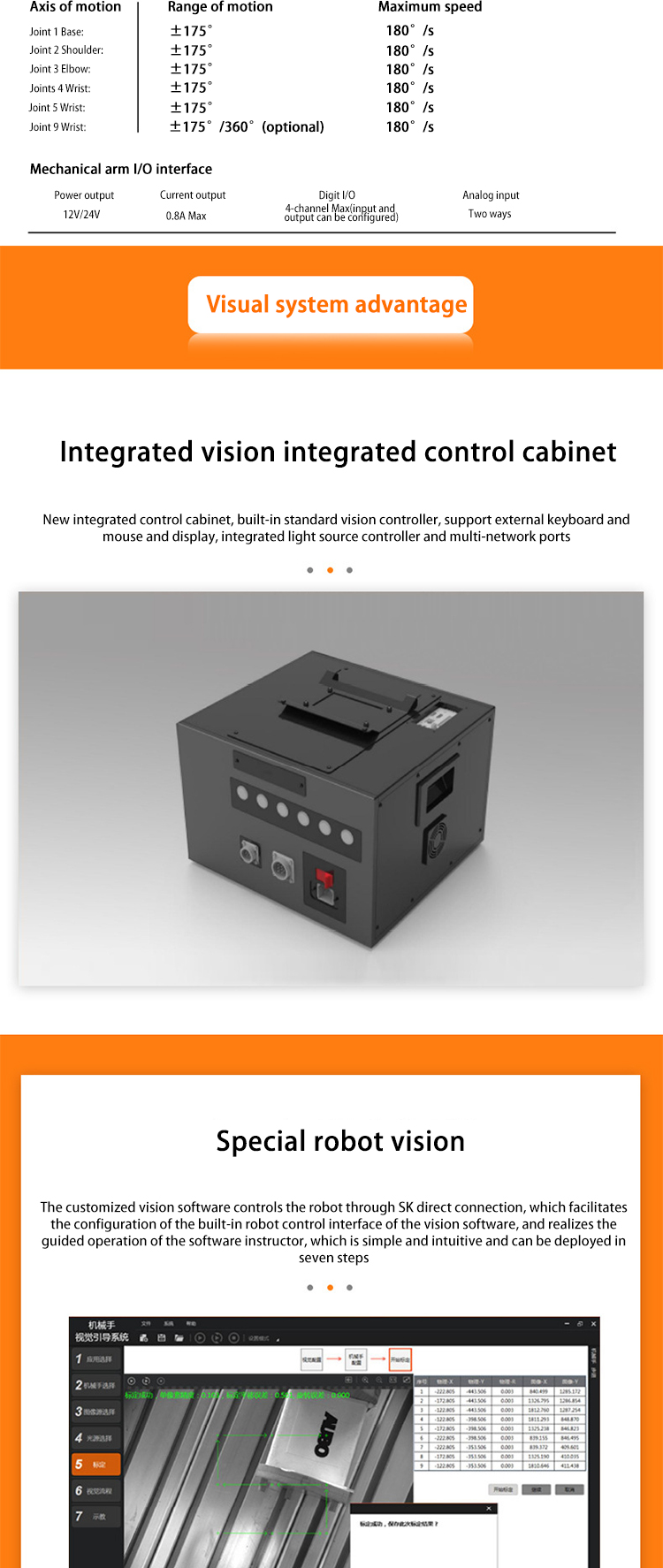

Axis of motion, range of motion, maximum speed
Joint 1 Base: ±175°, 180°/sec
Joint 2 Shoulder: ±175°, 180°/sec
Joint 3 Elbow: ±175°, 180°/sec
Wrist 4: ±175°, 180°/sec
Joint 5 Wrist: ±175°, 180°/sec
Joint 9 Wrist: ±175°/360° (optional), 180°/sec
Robotic arm I/O interface: Power output: 12V/24V, Current output 0.8A: Maximum, Digital 1/0: Up to 4 channels (configurable input and output), Analog input : Two-way.
Advantages of the visual system: integrated visual integrated control cabinet, brand new integrated control cabinet, built-in standard visual controller, support external keyboard, mouse and display, integrated light source controller and multiple network ports.
Special robot vision, customized visual software controls the robot through SK direct connection, convenient configuration of the visual software built-in robot control interface, realize software instructor-guided operation, simple and intuitive, and can be deployed in seven steps.

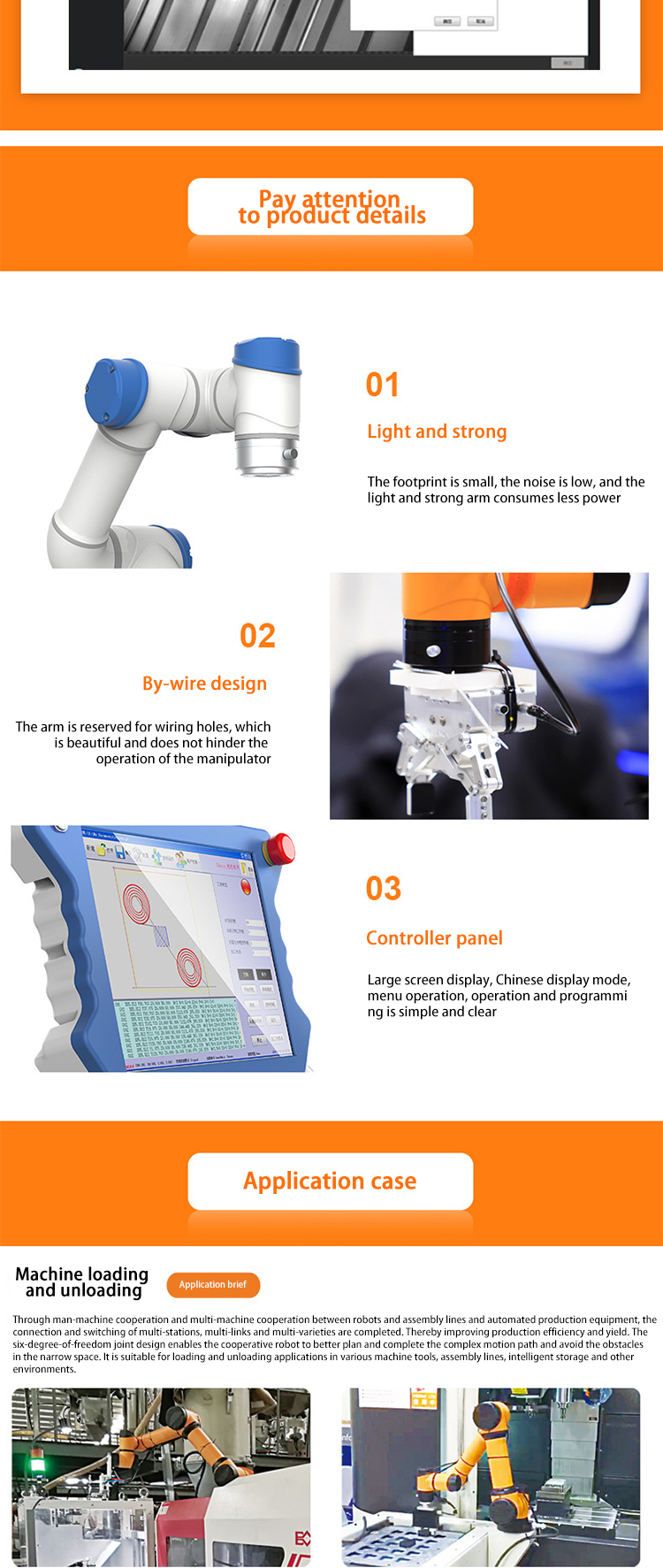

Focus on product details: Wire control design, reserved wiring holes on the arm, beautiful and does not hinder the operation of the manipulator. Light and sturdy, small footprint, low noise, lightweight and sturdy arm consumes less power. Controller panel, large screen display, Chinese display mode, menu operation, operation and programming are concise and clear.

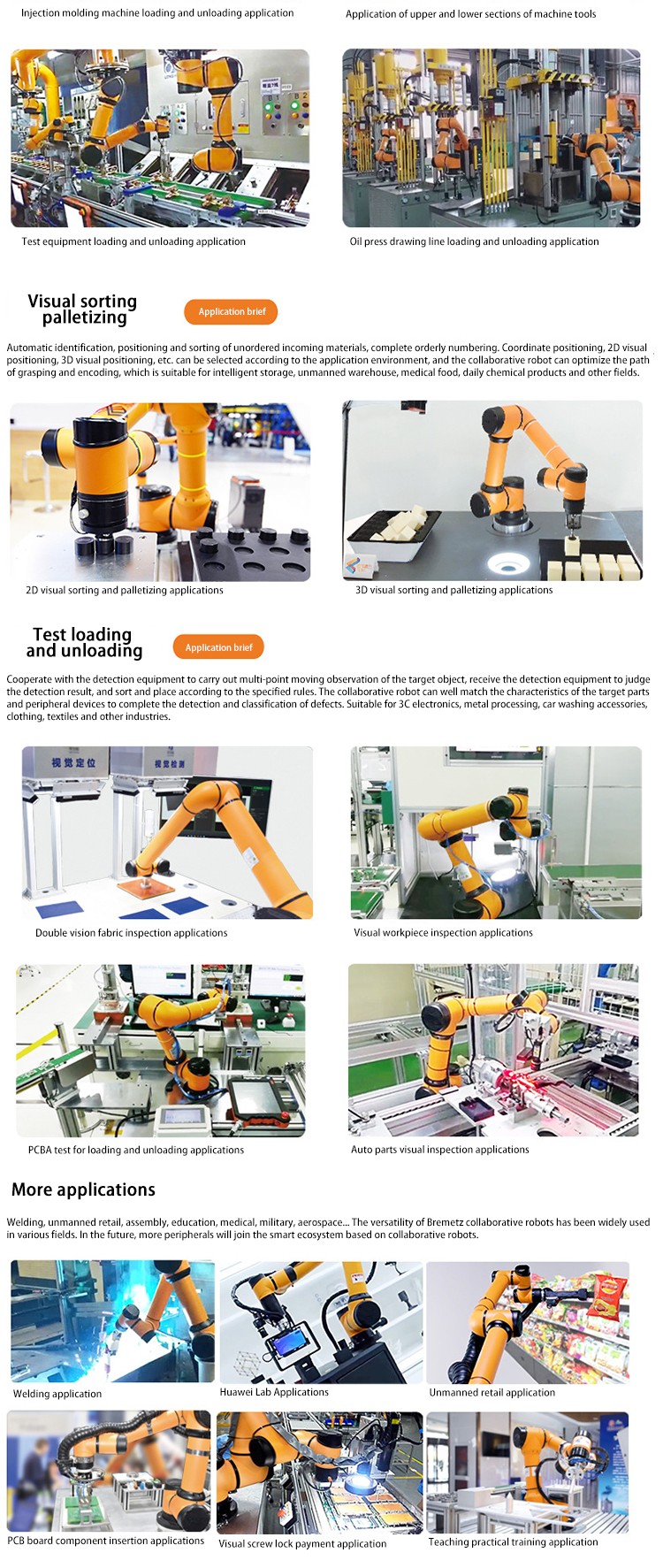

Application cases:
Machine loading and unloading, through the human-machine collaboration and multi-machine collaboration between robots and assembly lines and automated production equipment, the connection and switching of multiple stations, multiple links and multiple varieties are completed. Thereby improving production efficiency and yield.
Visual classification and palletizing, automatic identification, positioning and sorting of disordered incoming materials, and orderly numbering. Coordinate positioning, 2D visual positioning, 3D visual positioning, etc. can be selected according to the application environment, and the collaborative robot optimizes the grasping path and encoding.
Test loading and unloading, cooperate with the detection equipment to perform multi-point mobile observation of the target object, receive the detection results of the detection equipment, and classify and place according to the specified rules. The collaborative robot can well cooperate with the characteristics of the target parts and peripheral devices to complete the detection and classification of defects.
More applications, welding, unmanned retail, assembly, education, medical care, military, aerospace... The versatility of Bremetz collaborative robots has been widely used in various fields. In the future, more peripheral devices will be added to the intelligent ecosystem based on collaborative robots.
