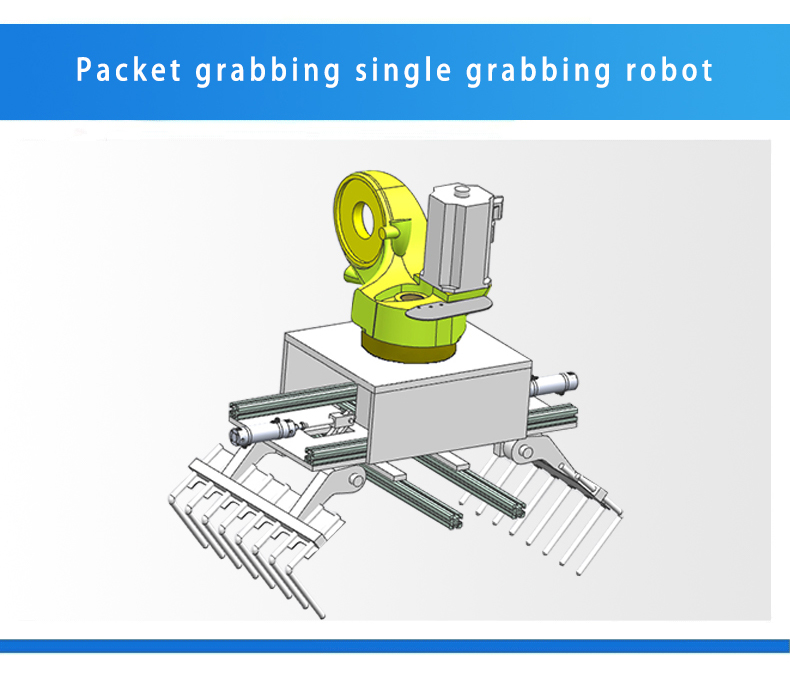

Palletizer bag grabbing single gripper manipulator accessories
The palletizer gripper has many advantages such as high automation, high precision, high safety, strong adaptability and improved production efficiency. It is a widely used automation equipment in modern manufacturing industry.

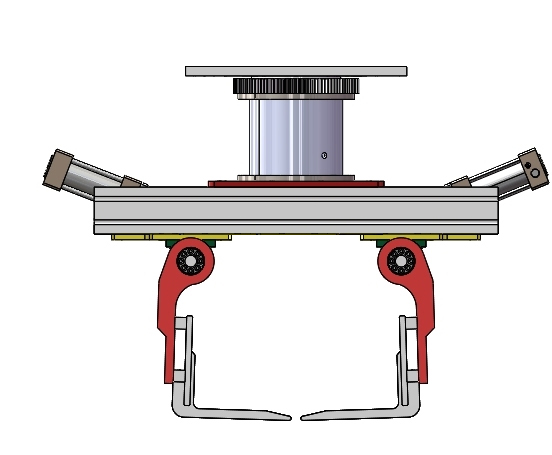

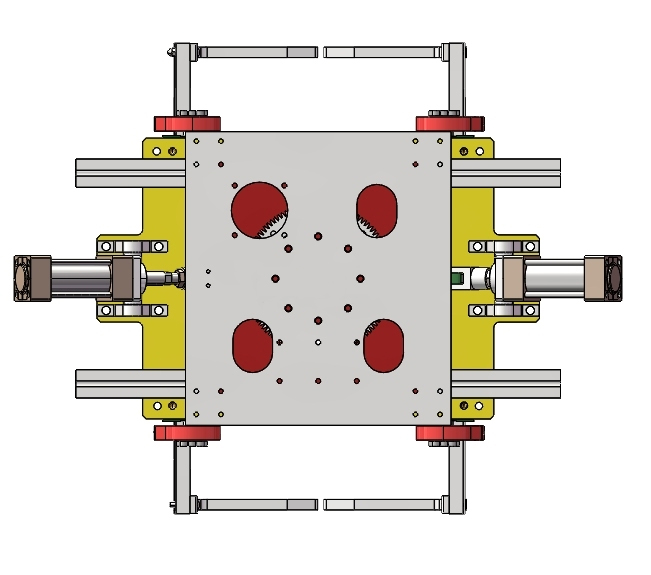

The palletizer gripper adopts a finger-type special bag gripper, which is equipped with a start-up pressing device and a pneumatic opening/closing device. The overall frame is made of aluminum profiles, with a solid structure and a stable and reliable grabbing process. The distance between the gripping teeth on both sides of the gripper can be manually adjusted to meet the requirements of different specifications of bags. The gripping teeth are made of stainless steel, and the spacing between the gripping teeth is consistent with the center distance between the rollers of the coding machine.
| Gripper structure | It adopts special finger-grabbing bag gripper, equipped with start-uppressng device and pneumatic opening/closing device.The o-veralframe is made of aluminum profiles, with a solid structure and a stable and reliablegra bbing process. The distance between the gripping teeth on both sides ofthegripper can be manually adjusted to meet the requirements of different specifications of bags. |
| Standard configuration | It is easy to install and maintain, and has fast movement speed:the servo axis automatically changes pitch to automatically adapt to the form switching of various types of bags, and can adaptto a variety of bag sizes within the pitch range. |
| Standard configuration | Stacking and handlingin food, grain and oil, chemicals,building materials and otherindustries |
Technicalparameters:
1.Aluminum profile splicing frame 2. SMC pneumatic components 3.304 stainless steel plywood
